LED Matrix Displays for indoor applications

The XC50 series is designed for indoor application. One- and double-sided readable displays are offered. The displays readable from one side have a LED matrix on the front, the displays readable from two sides have a LED matrix on the front and on the back.


Standard units - Matrix P4



Type designation



LED matrix (resolution)



One-sided display

Double-sided display



Serie XC50 - 128 x 32 Pixel

XC50-128.032.C1-A4A1-E1

XC50-128.032.C2-A4D1-E1

128 x 32 Pixel

Serie XC50 - 192 x 32 Pixel

XC50-192.032.C1-A4A1-E1

XC50-192.032.C2-A4D1-E1

192 x 32 Pixel

Serie XC50 - 256 x 32 Pixel

XC50-256.032.C1-A4A1-E1

XC50-256.032.C2-A4D1-E1

256 x 32 Pixel

Display range

4 lines with 28 mm character height1

2 lines with 55 mm character height1

1 line with 120 mm character height1

Width x height x depth [mm]

640 x 280 x 90 (170)2

900 x 280 x 90 (170)2

1150 x 280 x 90 (170)2



Type designation



LED matrix (resolution)



One-sided display

Double-sided display



Serie XC50 - 128 x 64 Pixel

XC50-128.064.C1-A4A1-E1

XC50-128.064.C2-A4D1-E1

128 x 64 Pixel

Serie XC50 - 192 x 64 Pixel

XC50-192.064.C1-A4A1-E1

XC50-192.064.C2-A4D1-E1

192 x 64 Pixel

Serie XC50 - 256 x 64 Pixel

XC50-256.064.C1-A4A1-E1

XC50-256.064.C2-A4D1-E1

256 x 64 Pixel

Display range

8 lines with 28 mm character height1

4 lines with 55 mm character height1

2 lines with 120 mm character height1

Width x height x depth [mm]

640 x 410 x 90 (170)2

900 x 410 x 90 (170)2

1150 x 410 x 90 (170)2



Type designation

LED matrix (resolution)



One-sided display

Serie XC50 - 256 x 96 Pixel

XC50-256.096.C1-A4A1-E1

256 x 96 Pixel

Display range

12 lines with 28 mm character height1

6 lines with 55 mm character height1

3 lines with 120 mm character height1

Width x height x depth [mm]

1150 x 540 x 90



Type designation

LED matrix (resolution)



One-sided display

Serie XC50 - 256 x 128 Pixel

XC50-256.128.C1-A4A1-E1

256 x 128 Pixel

Display range

16 lines with 28 mm character height1

8 lines with 55 mm character height1

4 lines with 120 mm character height1

Width x height x depth [mm]

1150 x 670 x 90


1 The numbers of characters per line depends on the font selected.

2 Values in brackets apply for devices with double-sided display.


Standard units - Matrix P8



Type designation



LED matrix (resolution)



One-sided display

Double-sided display



Serie XC50 - 64 x 16 Pixel

XC50-064.016.G1-A4A1-E1

XC50-064.016.G2-A4D1-E1

64 x 16 Pixel

Serie XC50 - 96 x 16 Pixel

XC50-096.016.G1-A4A1-E1

XC50-096.016.G2-A4D1-E1

96 x 16 Pixel

Serie XC50 - 128 x 16 Pixel

XC50-128.016.G1-A4A1-E1

XC50-128.016.G2-A4D1-E1

128 x 16 Pixel

Display range

2 lines with 55 mm character height1

1 line with 110 mm character height1

Width x height x depth [mm]

640 x 280 x 90 (170)2

900 x 280 x 90 (170)2

1150 x 280 x 90 (170)2



Type designation



LED matrix (resolution)



One-sided display

Double-sided display



Serie XC50 - 192 x 16 Pixel

XC50-192.016.G1-A4A1-E1

XC50-192.016.G2-A4D1-E1

192 x 16 Pixel

Serie XC50 - 256 x 16 Pixel

XC50-256.016.G1-A4A1-E1

XC50-256.016.G2-A4D1-E1

256 x 16 Pixel

Display range

2 lines with 55 mm character height1

1 line with 110 mm character height1

Width x height x depth [mm]

1660 x 280 x 90 (170)2

2180 x 280 x 90 (170)2



Type designation



LED matrix (resolution)



One-sided display

Double-sided display



Serie XC50 - 64 x 32 Pixel

XC50-064.032.G1-A4A1-E1

XC50-064.032.G2-A4D1-E1

64 x 32 Pixel

Serie XC50 - 96 x 32 Pixel

XC50-096.032.G1-A4A1-E1

XC50-096.032.G2-A4D1-E1

96 x 32 Pixel

Serie XC50 - 128 x 32 Pixel

XC50-128.032.G1-A4A1-E1

XC50-128.032.G2-A4D1-E1

128 x 32 Pixel

Display range

4 lines with 55 mm character height1

2 lines with 110 mm character height1

1 line with 240 mm character height1

Width x height x depth [mm]

640 x 410 x 90 (170)2

900 x 410 x 90 (170)2

1150 x 410 x 90 (170)2



Type designation



LED matrix (resolution)



One-sided display

Double-sided display



Serie XC50 - 192 x 32 Pixel

XC50-192.032.G1-A4A1-E1

XC50-192.032.G2-A4D1-E1

192 x 32 Pixel

Serie XC50 - 256 x 32 Pixel

XC50-256.032.G1-A4A1-E1

XC50-256.032.G2-A4D1-E1

256 x 32 Pixel

Display range

4 lines with 55 mm character height1

2 lines with 110 mm character height1

1 line with 240 mm character height1

Width x height x depth [mm]

1660 x 410 x 90 (170)2

2180 x 410 x 90 (170)2


Type designation



LED matrix (resolution)


One-sided display

Double-sided display



Serie XC50 - 128 x 48 Pixel

XC50-128.048.G1-A4A1-E1

XC50-128.048.G2-A4D1-E1

128 x 48 Pixel

Serie XC50 - 192 x 48 Pixel

XC50-192.048.G1-A4F1-E1

XC50-192.048.G2-A4D1-E1

192 x 48 Pixel

Serie XC50 - 256 x 48 Pixel

XC50-256.048.G1-A4F1-E1

XC50-256.048.G2-A4D1-E1

256 x 48 Pixel

Display range

6 lines with 55 mm character height1

3 lines with 110 mm character height1

Width x height x depth [mm]

1150 x 540 x 90 (170)2

1750 x 680 x 130 (270)2

2260 x 680 x 130 (270)2


Type designation



LED matrix (resolution)


One-sided display

Double-sided display



Serie XC50 - 128 x 64 Pixel

XC50-128.064.G1-A4A1-E1

XC50-128.064.G2-A4D1-E1

128 x 64 Pixel

Serie XC50 - 192 x 64 Pixel

XC50-192.064.G1-A4F1-E1

XC50-192.064.G2-A4D1-E1

192 x 64 Pixel

Serie XC50 - 256 x 64 Pixel

XC50-256.064.G1-A4F1-E1

XC50-256.064.G2-A4D1-E1

256 x 64 Pixel

Display range

8 lines with 55 mm character height1

4 lines with 110 mm character height1

2 lines with 240 mm character height1

Width x height x depth [mm]

1150 x 670 x 90 (170)2

1750 x 810 x 130 (270)2

2260 x 810 x 130 (270)2



Type designation

LED matrix (resolution)



One-sided display

Serie XC50 - 256 x 96 Pixel

XC50-256.096.G1-A4F1-E13

256 x 96 Pixel

Display range

12 lines with 55 mm character height1

6 line with 110 mm character height1

3 lines with 240 mm character height1

Width x height x depth [mm]

2260 x 1070 x 130



Type designation

LED matrix (resolution)



One-sided display

Serie XC50 - 256 x 128 Pixel

XC50-256.128.G1-A4D1-E13

256 x 128 Pixel

Display range

16 lines with 55 mm character height1

8 line with 110 mm character height1

4 lines with 240 mm character height1

Width x height x depth [mm]

2260 x 1330 x 150


1 The numbers of characters per line depends on the font selected.

2 Values in brackets apply for devices with double-sided display.

3 Wall or pendant mounting, cable entry on the top of the housing.

Icon Fonts

Fonts

The devices have typographically designed fonts. As in office programs, they provide a graphically and ergonomically perfect presentation of information, with narrow normal and bold fonts.

Serie XC50 - Fonts

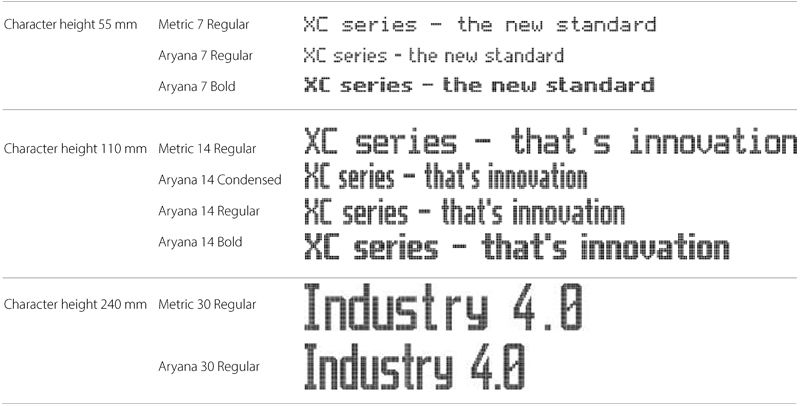

The fonts «Metric» show each character with the same width (equidistant fonts).
The fonts «Aryana» are proportional fonts (recommended) and show each character only with the actually needed width – so one line can display more characters, as shown in the font samples above.
The following table shows how many characters can be displayed in one line, depending on the font selected.
The actual number of characters depends on the text to be displayed. The specifications are guide values.



Width of the LED matrix

Aryana 7 Regular

Aryana 7 Bold

Metric 7 Regular

Aryana 14 Condensed

Aryana 14 Regular

Aryana 14 Bold

Metric 14 Regular

Aryana 30 Regular

Metric 30 Regular

32 Px

6

4

5

5

4

3

3

2

2

64 Px

13

9

10

9

8

7

7

4

4

96 Px

19

14

16

14

13

10

10

6

6

128 Px

26

19

21

19

17

14

14

8

8

192 Px

39

28

32

29

26

20

21

13

12

256 Px

52

37

42

39

35

27

28

17

16



Depending on the pixel pitch of the LED matrix there are the following character heights:



Font

Aryana 7, Metric 7

Aryana 14, Metric 14

Aryana 30, Metric 30

Matrix P4

28 mm

55 mm

120 mm

Matrix P8

55 mm

120 mm

240 mm

Matrix P16

-

220 mm

480 mm



In addition, the devices have freely scalable fonts (equidistant and proportional) that make it possible to display any font size that can be shown on the display.


LED color

Brilliant luminous and freely configurable LED matrix.
LED color scale: Red, green, blue yellow, cyan, magenta, white, turquoise, black (LED off)

Subheader Icon Technical data Options

Options

The devices are optimized for professional use.
For further requirements corresponding options are possible.

Control

Standard

Optional

Ethernet

Additional Profinet extension module

Additionally WLAN IEEE 802.11 b/g/n



XC50-xxx.xxx-xxxx-Nx

XC50-xxx.xxx-xxxx-x7

Housing

Standard

Optional

Steel sheet, powder-coated

Stainless steel V2A brushed (material 1.4301)

Stainless steel V2A powder-coated (material 1.4301)

Stainless steel V4A brushed (material 1.4571)

Stainless steel V4A powder-coated (material 1.4571)



XC50-xxx.xxx.xx-Exxx-xx

XC50-xxx.xxx.xx-Gxxx-xx

XC50-xxx.xxx.xx-Kxxx-xx

XC50-xxx.xxx.xx-Mxxx-xx

Protection class

Standard

Optional

IP54

IP65



XC50-xxx.xxx.xx-x6xx-xx

Mounting

Standard



Optional

Displays readable from one side:
Wall mounting, cable entry on the bottom of the housing.
Displays readable from two sides:
Pendant mounting, cable entry on the top of the housing.

Displays readable from one side:
Pendant mounting, cable entry on the top of the housing XC50-xxx.xxx.xx-xxFx-xx
(except XC50-192.048.G1-xxxx-xx, XC50-192.064.G1-xxxx-xx, XC50-256.048.G1-xxxx-xx, XC50-256.064.G1-xxxx-xx, XC50-256.096.G1-xxxx-xx und XC50-256.128.G1-xxxx-xx)





XC50-xxx.xxx.xx-xxFx-xx

Subheader Icon Technical data

Technical data

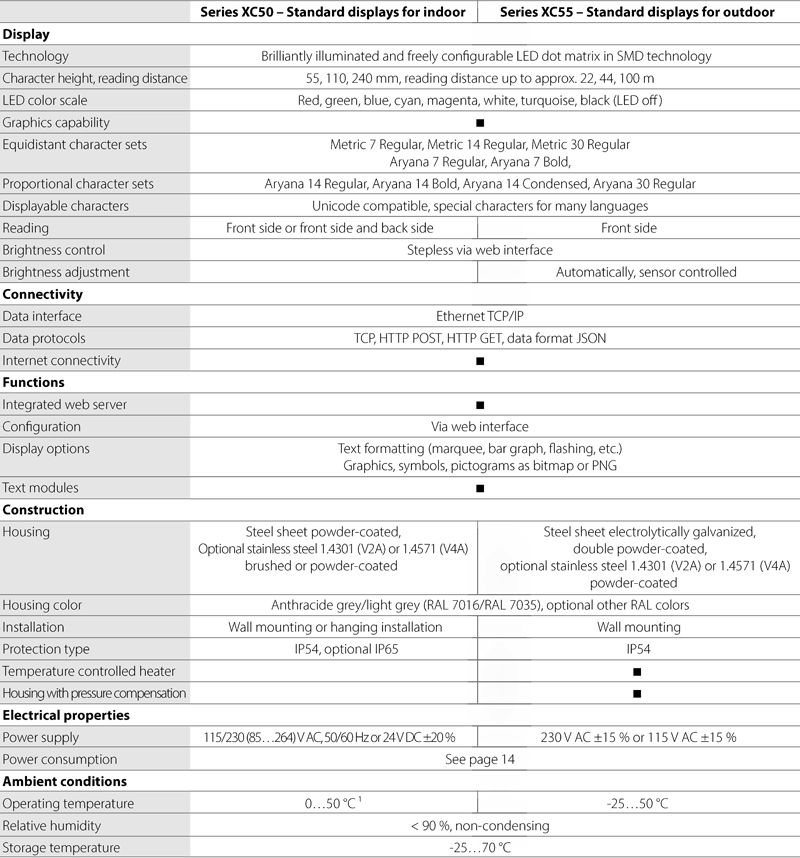

Serie XC50 - Technical data

Power consumption

The performance data are approximate values in Watt.

Devices with matrix P4, readable from one side



Devices with matrix P4, readable from two sides

XC50-128.032.C1-xxxx-xx

XC50-192.032.C1-xxxx-xx

XC50-256.032.C1-xxxx-xx

XC50-128.064.C1-xxxx-xx

XC50-192.064.C1-xxxx-xx

XC50-256.064.C1-xxxx-xx

XC50-256.096.C1-xxxx-xx

XC50-256.128.C1-xxxx-xx



30

35

40

40

60

80

110

140



XC50-128.032.C2-xxxx-xx

XC50-192.032.C2-xxxx-xx

XC50-256.032.C2-xxxx-xx

XC50-128.064.C2-xxxx-xx

XC50-192.064.C2-xxxx-xx

XC50-256.064.C2-xxxx-xx



60

70

80

80

120

160


Devices with matrix P8, readable from one side





Devices with matrix P8, readable from two sides

XC50-064.016.G1-xxxx-xx

XC50-096.016.G1-xxxx-xx

XC50-128.016.G1-xxxx-xx

XC50-192.016.G1-xxxx-xx

XC50-256.016.G1-xxxx-xx

XC50-064.032.G1-xxxx-xx

XC50-096.032.G1-xxxx-xx

XC50-128.032.G1-xxxx-xx

XC50-192.032.G1-xxxx-xx

XC50-256.032.G1-xxxx-xx

XC50-128.048.G1-xxxx-xx

XC50-192.048.G1-xxxx-xx

XC50-256.048.G1-xxxx-xx

XC50-128.064.G1-xxxx-xx

XC50-192.064.G1-xxxx-xx

XC50-256.064.G1-xxxx-xx

XC50-256.096.G1-xxxx-xx

XC50-256.128.G1-xxxx-xx



25

30

35

50

70

35

50

65

95

120

95

135

180

120

180

240

360

480



XC50-064.016.G2-xxxx-xx

XC50-096.016.G2-xxxx-xx

XC50-128.016.G2-xxxx-xx

XC50-192.016.G2-xxxx-xx

XC50-256.016.G2-xxxx-xx

XC50-064.032.G2-xxxx-xx

XC50-096.032.G2-xxxx-xx

XC50-128.032.G2-xxxx-xx

XC50-192.032.G2-xxxx-xx

XC50-256.032.G2-xxxx-xx

XC50-128.048.G2-xxxx-xx

XC50-192.048.G2-xxxx-xx

XC50-256.048.G2-xxxx-xx

XC50-128.064.G2-xxxx-xx

XC50-192.064.G2-xxxx-xx

XC50-256.064.G2-xxxx-xx



40

50

65

95

140

65

95

120

180

240

180

270

350

240

350

460

Dimensions and weights



Series XC50 – Indoor devices, readable from one side

The following figure shows unit version XC50-096.032.G1-xxAx-xx representing the other devices listed in the table. Dimensions in mm. The weights are approximate values in kg.



Devices with matrix P4

XC50-128.032.C1-xxAx-xx

XC50-192.032.C1-xxAx-xx

XC50-256.032.C1-xxAx-xx

XC50-128.064.C1-xxAx-xx

XC50-192.064.C1-xxAx-xx

XC50-256.064.C1-xxAx-xx

XC50-256.096.C1-xxAx-xx

XC50-256.128.C1-xxAx-xx

A

640

900

1150

640

900

1150

1150

1150

B

280

280

280

410

410

410

540

670

D

16

16

20

16

20

20

25

25

Ø

7

7

9

7

9

9

11

11

Weight

9

12

16

13

17

21

27

32



Devices with matrix P8

XC50-064.016.G1-xxAx-xx

XC50-096.016.G1-xxAx-xx

XC50-128.016.G1-xxAx-xx

XC50-192.016.G1-xxAx-xx

XC50-256.016.G1-xxAx-xx

XC50-064.032.G1-xxAx-xx

XC50-096.032.G1-xxAx-xx

XC50-128.032.G1-xxAx-xx

XC50-192.032.G1-xxAx-xx

XC50-256.032.G1-xxAx-xx

XC50-128.048.G1-xxAx-xx

XC50-128.064.G1-xxAx-xx

A

640

900

1150

1660

2180

640

900

1150

1660

2180

1150

1150

B

280

280

280

280

280

410

410

410

410

410

540

670

D

16

16

20

20

25

16

20

20

25

25

25

25

Ø

7

7

9

9

11

7

9

9

11

11

11

11

Weight

9

12

16

24

32

13

17

22

32

42

28

34



The following figure shows unit version XC50-192.048.G1-xxEx-xx representing the other devices listed in the table. Dimensions in mm. The weights are approximate values in kg.



Devices with matrix P8

XC50-192.048.G1-xxFx-xx

XC50-256.048.G1-xxFx-xx

XC50-192.064.G1-xxFx-xx

XC50-256.064.G1-xxFx-xx

XC50-256.096.G1-xxFx-xx1

XC50-256.128.G1-xxDx-xx1

A

1750

2260

1750

2260

2260

2260

B

680

680

810

810

1070

1330

C

130

130

130

130

130

150

Weight

73

96

89

115

180

220


1Rear mounting holes Ø13 not existent.



Series XC50 – Indoor devices, readable from two sides

The following figure shows unit version XC50-096.032.G2-xxDx-xx representing the other devices listed in the table. Dimensions in mm. The weights are approximate values in kg.



Devices with matrix P4

XC50-128.032.C2-xxDx-xx

XC50-192.032.C2-xxDx-xx

XC50-256.032.C2-xxDx-xx

XC50-128.064.C2-xxDx-xx

XC50-192.064.C2-xxDx-xx

XC50-256.064.C2-xxDx-xx

A

640

900

1150

640

900

1150

B

280

280

280

410

410

410

Weight

14

17

23

19

25

31



Devices with matrix P8

XC50-064.016.G2-xxDx-xx

XC50-096.016.G2-xxDx-xx

XC50-128.016.G2-xxDx-xx

XC50-192.016.G2-xxDx-xx

XC50-256.016.G2-xxDx-xx

XC50-064.032.G2-xxDx-xx

XC50-096.032.G2-xxDx-xx

XC50-128.032.G2-xxDx-xx

XC50-192.032.G2-xxDx-xx

XC50-256.032.G2-xxDx-xx

XC50-128.048.G2-xxDx-xx

XC50-128.064.G2-xxDx-xx

A

640

900

1150

1660

2180

640

900

1150

1660

2180

1150

1150

B

280

280

280

280

280

410

410

410

410

410

540

670

Weight

14

18

24

36

48

20

26

33

48

63

42

51



The following figure shows unit version XC50-192.048.G2-xxDx-xx representing the other devices listed in the table. Dimensions in mm. The weights are approximate values in kg.



Devices with matrix P8

XC50-192.048.G2-xxDx-xx

XC50-256.048.G2-xxDx-xx

XC50-192.064.G2-xxDx-xx

XC50-256.064.G2-xxDx-xx

A

1750

2260

1750

2260

B

680

680

810

810

Weight

110

144

134

173
