Numeric large size displays

The LED matrix of these large size displays is realized in cluster technology. It has a character height of 350 or 700 mm and allows reading distances up to 140 or 280 m. The large size displays consist of single modules that can be strung together horizontally or vertically.

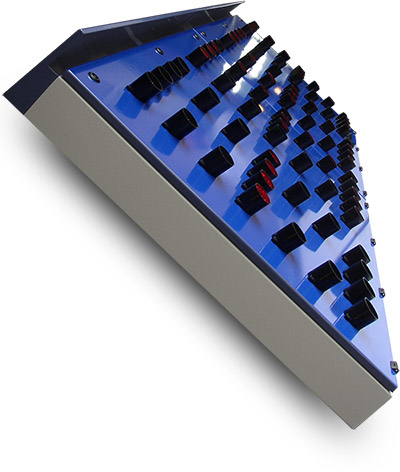

Modular construction

With character heights of 350 or 700 mm the housings are correspondingly large. However, to guarantee safe handling during installation and commissioning the large size displays of the S702 series consist of single display modules. The modules can be lined vertically or horizontally so that the line length and number of lines can be defi ned individually.


Interfaces for industrial communication

The large size displays support the interfaces for the industrial communication: fi eld buses, network topologies, serial or parallel interfaces and also the control with analogue signals and impulses (counter).


Internal second display

After opening the housing a second display is visible. It shows the same values as the main display. There is no need for the main display to be visible during commissioning and parameterization – an operational convenience especially with large volume devices or at exposed installation sites.

In the menu mode a menu appears in the second display. Operation modes, parameters and device functions are de ned in the menu. A fixed decimal point can be defined as well as if leading zeros are to be displayed or not to be displayed, or if a display test has to take place after power-on.


Sensor supply

The devices have a voltage source to supply sensors or signalers (except devices with Profi bus interface). The power source can also be used as H signal for the function inputs.

Function inputs

The devices are equipped with PLC-compatible function inputs. They allow the activation of device functions such as flashing, blanking and reduction of the LED brightness independent from the signals over the data interface (except devices with parallel or Profi bus interface).

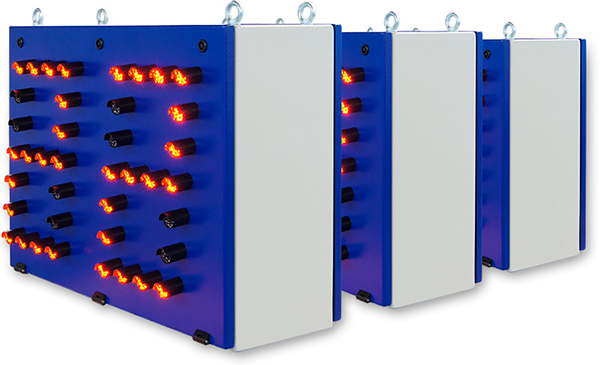

Readable one- or double-sided

The large size displays are offered either with a one- or a double-sided display. The versions with a double-sided display have a LED display and show the same information on both sides.


Switching outputs

The devices dispose of potential-free switching outputs. A command over the data interface generates a wiping impulse at the switching output. Devices with serial or Ethernet interface can automatically generate a wiping impulse on receipt of a data telegram. The wiping impulse is suitable for the controlling of optical or acoustical signalers to draw the attention to the change of information on the display (except devices with parallel or Profi bus interface). Devices with analog or counting pulse input have switching outputs for the upper and lower limit value.

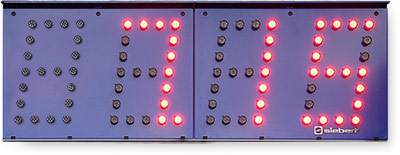

Ignoring of characters

If the characters to be displayed in the data telegram do not begin at the first position it is set in the menu how many preceding characters are to be ignored. Thus the user data can be selectively evaluated (for devices with serial data interface).


Extended character set

Among the digits the character set also contains the other letters and special characters which can be displayed with a 7-segment matrix (for devices with serial or fieldbus interface).

Individual project planning

The display modules are designed for wall mounting or they are mounted on carrier systems. The designing of the systems takes place in cooperation with the customer.
