Graphic boards

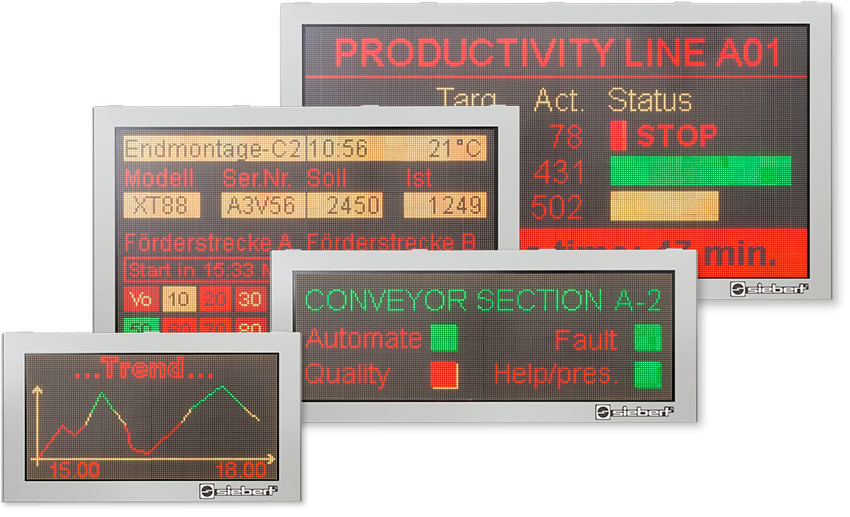

The graphic boards of the SGX500 series have a LED matrix for presenting texts, graphics and animations. They are deliverable with a display screen of up to 2 x 1 m as standard.


Easy mounting and installation

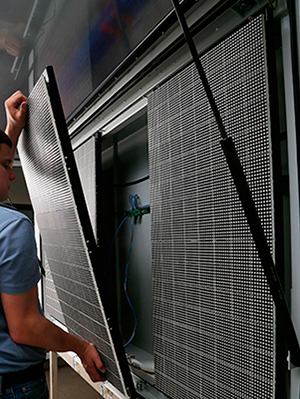

The front frame is locked with quick-action releases. When opening the unit the front frame hinges downward and is held by pneumatic springs. Connectors, modules and controls are now directly accessible without disassembling housing parts.




Simple control

The graphic boards are controlled by a DVI-D interface and are recognized from a PC as a monitor. Optionally the graphic boards are available with an integrated embedded PC. This PC can also serve as virtual network client server (VNC).

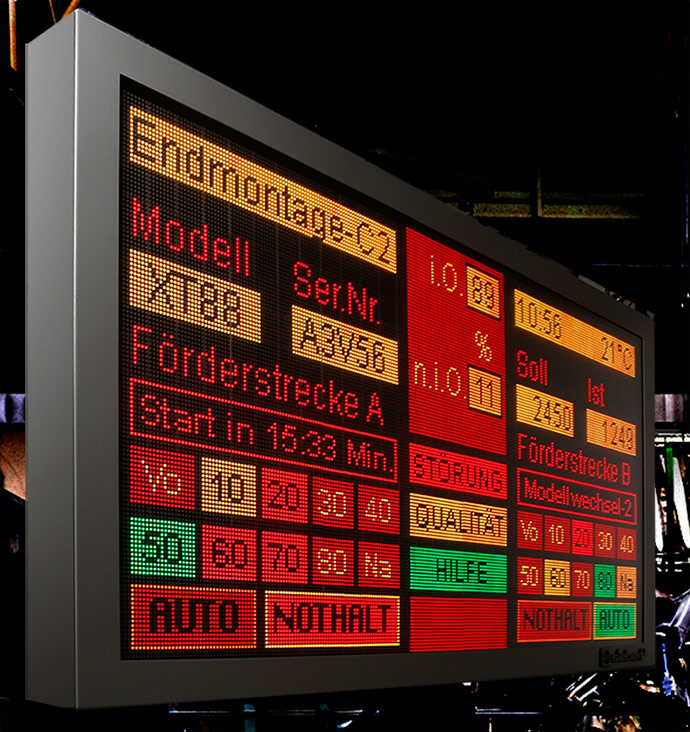

Luminous and colorfast LED matrix

The high luminosity of the LED matrix as well as its colorfastness are special features of the graphic boards.

Readable one- or double-sided

The graphic boards are offered either with a one- or a double-sided display. The versions with a double-sided display have a LED matrix on the front and on the rear side and show the same information on both sides.
