LED Matrix Displays for indoor applications

The XC50 series is designed for indoor application. One- and double-sided readable displays are offered. The displays readable from one side have a LED matrix on the front, the displays readable from two sides have a LED matrix on the front and on the back.

Serie XC50 - 3D

The XC50 series is designed for indoor application.
One- and double-sided readable displays are offered. The displays readable from one side have a LED matrix on the front, the displays readable from two sides have a LED matrix on the front and on the back.

The displays that can be read from one side are for wall mounting with cable entry on the bottom of the housing.
The displays readable from two sides are for pendant mounting with cable entry on the top of the housing.

Serie XC50 - Matrix P4

Serie XC50 - Comparison Matrix P4 vs P8

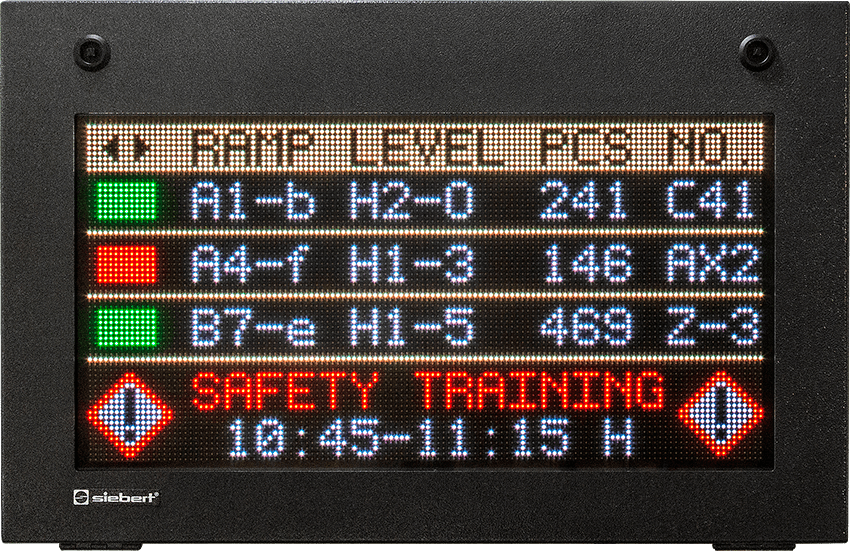

The matrix P4 has a pixel pitch of 4 mm.
>> Possible font sizes see here

Serie XC50 - Matrix P8

Serie XC50 - Comparison Matrix P4 vs P8

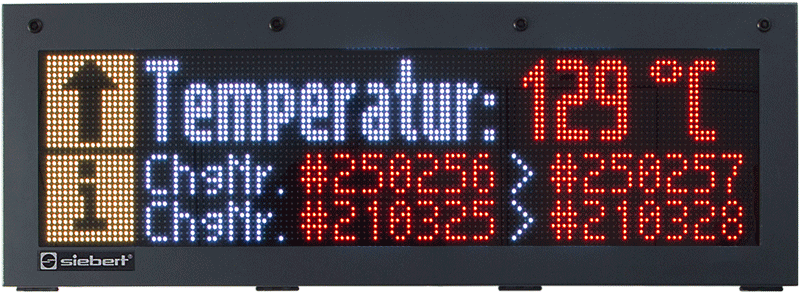

The matrix P8 has a pixel pitch of 8 mm.
>> Possible font sizes see here

Digital displays in technical perfection

Designed for professional applications in industrial environments, the LED matrix displays of the XC50 series set a new standard with their superior technology and innovative details.
The user can choose from an extensive range of ready-to-connect and easy-to-mount devices.

Freely configurable LED matrix

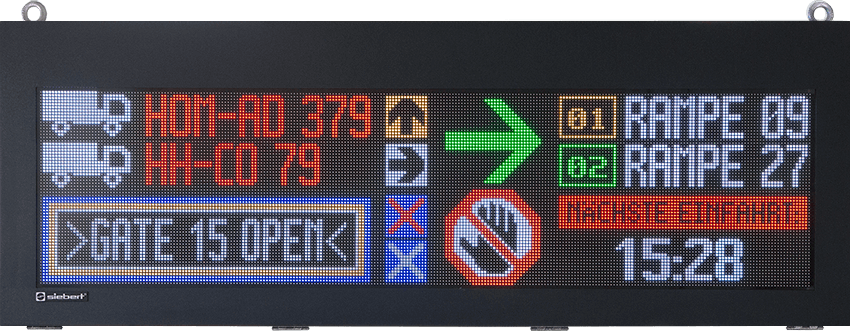

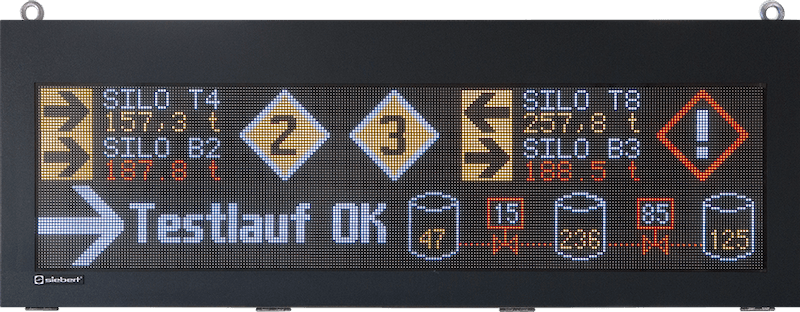

Texts, numbers and graphics can be displayed on the LED matrix in brilliant colors. Graphics, symbols and pictograms can be integrated as bitmap or PNG. The LED matrix is characterized by high luminosity, durability and a large reading angle.

Serie XC50 - Easy to assemble construction

Typographically designed fonts

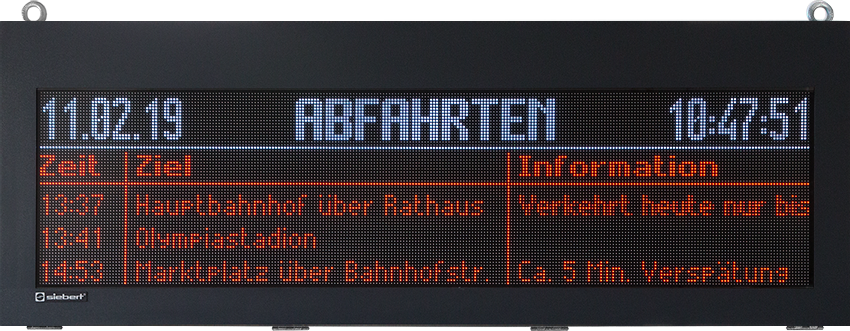

A special feature are the typographically designed fonts with narrow, normal and bold fonts. They provide a print-like typeface and enable the ergonomically perfect presentation of information. Cyrillic, Greek and Arabic characters can also be displayed.

Serie XC50 - Freely configurable LED matrix

Typical applications

  • Process visualization, user guidance
  • Andon Boards
  • Visualization of production data
  • Digital Signage
  • Traffic control technology, car park systems/li>
  • Logistics and truck call systems
  • Building automation
  • Energy and environment

Easy to assemble construction

The devices are characterized by a professional industrial design.
Quick-release fasteners on the housings provide convenient access to all connections and components.

The devices shown are partly equipped with a weather protection cover (option).
It protects the devices from rain, snow and ice as well as from heat-up by solar radiation and is recommended for outdoor devices.

Intelligent features

Integrated web server

An innovative feature of the XC50 series is the integrated web server.
It enables convenient parameterization of the devices via a standard web browser from a PC or mobile device without the need to install PC software.
The information to be displayed can also be entered manually via the web interface.

Serie XC50 - Integrated web server

Object-oriented control

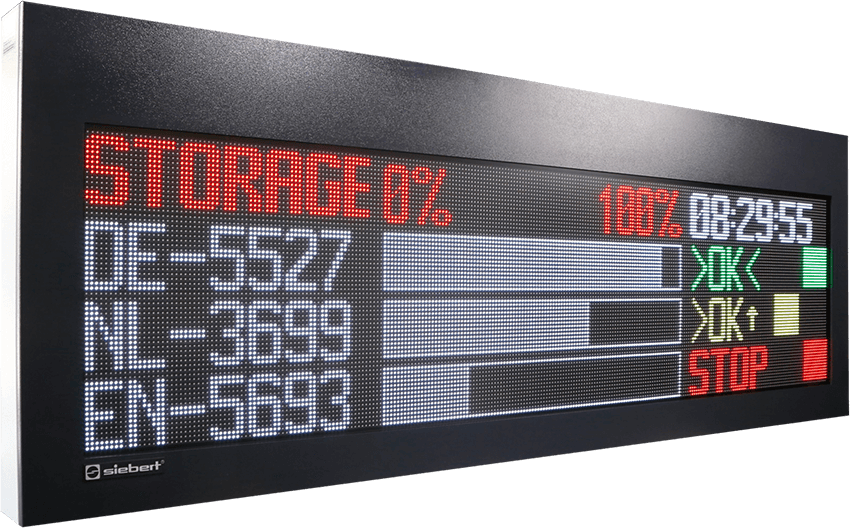

An advantage of the object-oriented control is the separation of layout and data. Layout objects (display fields) are defined on the matrix, e.g. for texts, numerical information, graphics (BMP, PNG), luminous indicator fields, bar graphs, date/time formats as well as time/date counting.

Position, size and level of the layout objects are freely selectable. All objects can be controlled independently from each other.

The formatting (color, font, background, color change, blinking, etc.) can be set individually for each object and are automatically assigned to the user data. If, for example a color change is preset when the threshold value is exceeded, it is carried out automatically and without a special command.

Serie XC50 - Object-oriented control

Remote access

The current displayed information can be called up in photorealistic form via the network or the Internet, status information can also be requested, data can be entered and parameters can be changed.

Layout Editor

The devices offer a variety of predefined layouts. In addition, the layout editor offers the comfortable design of individual layouts.

Serie XC50 - Layout Editor

Ethernet and WLAN

The devices can be controlled via their Ethernet interface. Optionally they can additionally be controlled via WLAN IEEE 802.11 b/g/n.
Ethernet and WLAN can be used at the same time.

Wifi Logo

Smart control in Profinet environments

The integrated PLC connector cyclically interrogates the information to be displayed in the web server of the PLC with HTTP and displays them on the LED matrix. The programming is done by transferring two files generated by the display. If several devices are integrated this does not increase the number of participants in the network.

Serie XC50 - Smart control in Profinet environments

Profinet extension module

An optionally available Profinet extension module not only enables the reception of data via Ethernet TCP/IP and WLAN, but also the processing of Profinet data. Due to the integrated IRT-capable switch, simultaneous use of the various interfaces is possible.

The displays can be controlled via Profinet as well as via Ethernet or WLAN, thus offering maximum flexibility for future visualization requirements.

Energy saving mode

The LED matrix can be darkened for individually programmable weekdays, e.g. to reduce the energy consumption. The web server remains active in the background, so that the JSON interface and the PLC connector remain accessible.

Optimal safety by user management

The user rights management allows individual access and administrator rights.
The access control over the web server is carried out via the user authentication.

Potential-free switching output

External peripheral units, such as signal transmitters, traffic lights, etc. can be controlled using the JSON protocol or manually via the web site with a potential-free switching output.

Text and graphics memory

The devices have a memory in which texts and graphics can be stored with an address.
To display them on the LED matrix, just call up the corresponding address, without having to send the data again.
