Numeric large size displays

The LED matrix of these large size displays is realized in cluster technology. It has a character height of 350 or 700 mm and allows reading distances up to 140 or 280 m. The large size displays consist of single modules that can be strung together horizontally or vertically.

Eye symbol indicating reading distance

Reading distance

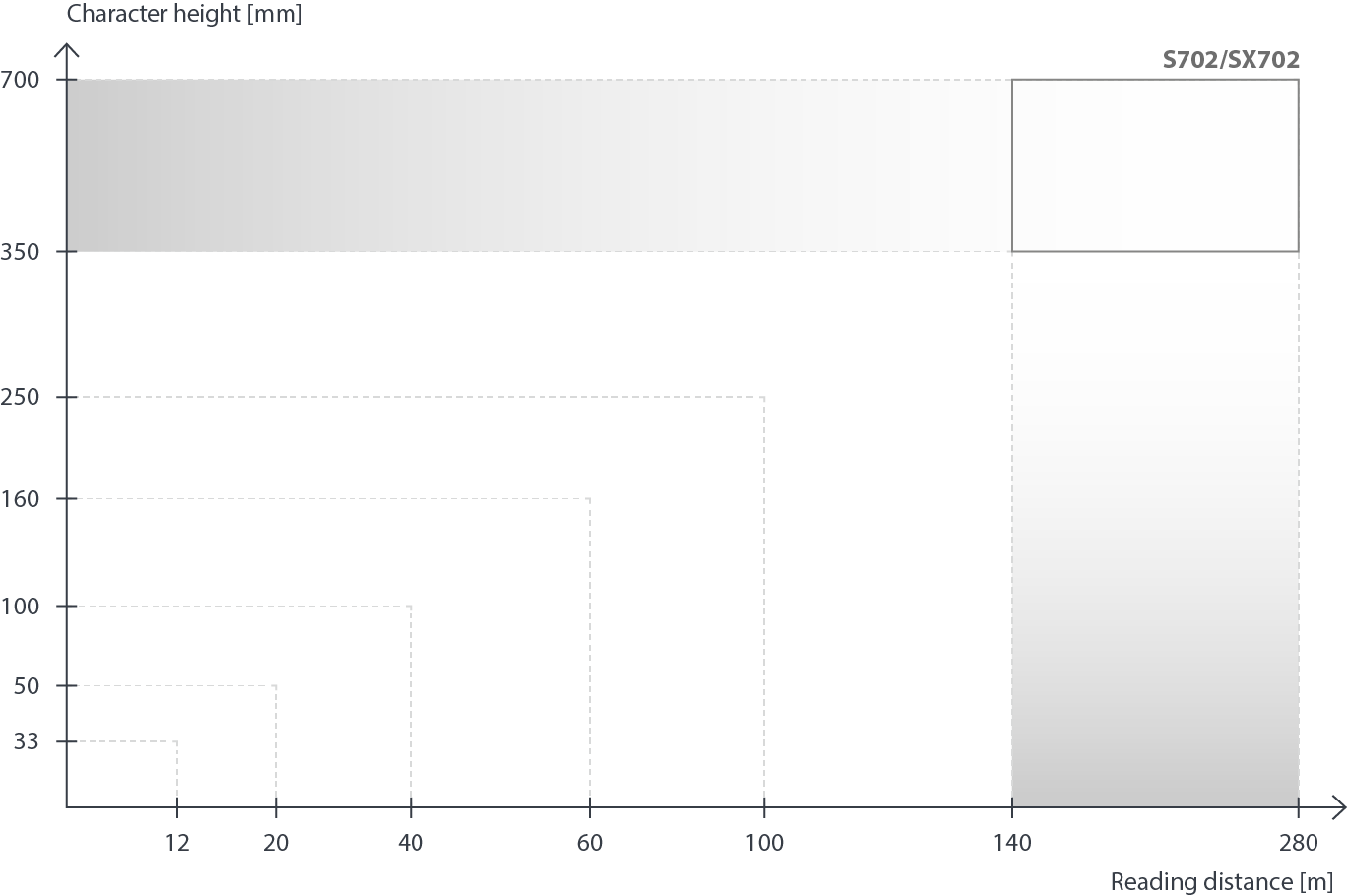

As a guideline for the maximum reading distance under good conditions:
Character height [mm] x 0.4 = reading distance [m].


For example a character height of 100 mm results in a reading distance of up to 40 m. The character height should not be chosen too small, especially outdoors where the size is subjectively felt smaller.


Standard units

Character height

350 mm

Measures A x B x C


-

-


2 Digits

650 x 480 x 170 mm


3 Digits

975 x 480 x 170 mm


4 Digits

1300 x 480 x 170 mm



Character height

700 mm

Measures A x B x C


1 Digit

650 x 900 x 180 mm


2 Digits

1300 x 900 x 180 mm

Subheader Icon Technical data interfaces

Data interface

Ethernet TCP/IP

Profibus DP

Modbus RTU

Modbus TCP/IP

DeviceNet

Interbus Cu

RS485/RS232

20 mA TTY/RS232

BCD/binary

Analog

Counter

S702-xx/xx/xx-xxx/xx-E0

S702-xx/xx/xx-xxx/xx-K0

S702-xx/xx/xx-xxx/xx-M0

S702-xx/xx/xx-xxx/xx-YT

S702-xx/xx/xx-xxx/xx-YD

S702-xx/xx/xx-xxx/xx-CJ

S702-xx/xx/xx-xxx/xx-S0

S702-xx/xx/xx-xxx/xx-T0

S702-xx/xx/xx-xxx/xx-P0 (1 to 6 digits)

S702-xx/xx/xx-xxx/xx-A0 (2 to 5 digits)

S702-xx/xx/xx-xxx/xx-Z0 (2 to 8 digits)


LED color

White

Red

Green

Yellow

S702-xxx/xx/3W-xxx/xx-xx

S702-xxx/xx/3R-xxx/xx-xx

S702-xxx/xx/3G-xxx/xx-xx

S702-xxx/xx/3Y-xxx/xx-xx

Subheader Icon Technical data Options

Options

LED for outdoor use

S702-xxx/xx/2x-xxx/xx-xx

Housing with two-layer coating

S702-xxx/xx/xx-x1x/xx-xx

Housing V2A (stainless steel), varnished

S702-xxx/xx/xx-x2x/xx-xx

Housing V2A (stainless steel), brushed

S702-xxx/xx/xx-x3x/xx-xx

Housing V4A (stainless steel), brushed

S702-xxx/xx/xx-x5x/xx-xx

Protection type IP65

S702-xxx/xx/xx-xx1/xx-xx

Protection type IP54 with climate control

S702-xxx/xx/xx-xx2/xx-xx

Protection type IP54 with climate control and heating

S702-xxx/xx/xx-xx4/xx-xx

Subheader Icon Technical data

Technical data

Power supply

230 V AC ±15 %, 50 Hz, optional 24 V DC ±15 % or 115 V AC ±15 %, 60 Hz

Housing

Steel sheet, optional stainless steel,
varnishing RAL 5002 ultramarine blue/RAL 7035 light grey

Protection class

IP54, optional IP65

Detailed technical data see operating instructions.
