Numeric large size displays

With technical perfection and innovative details the S302 series sets a standard for professional large size displays. The wide range of types covers devices with up to 8 digits, character heights from 57 to 250 mm and all common data interfaces.

Eye symbol indicating reading distance

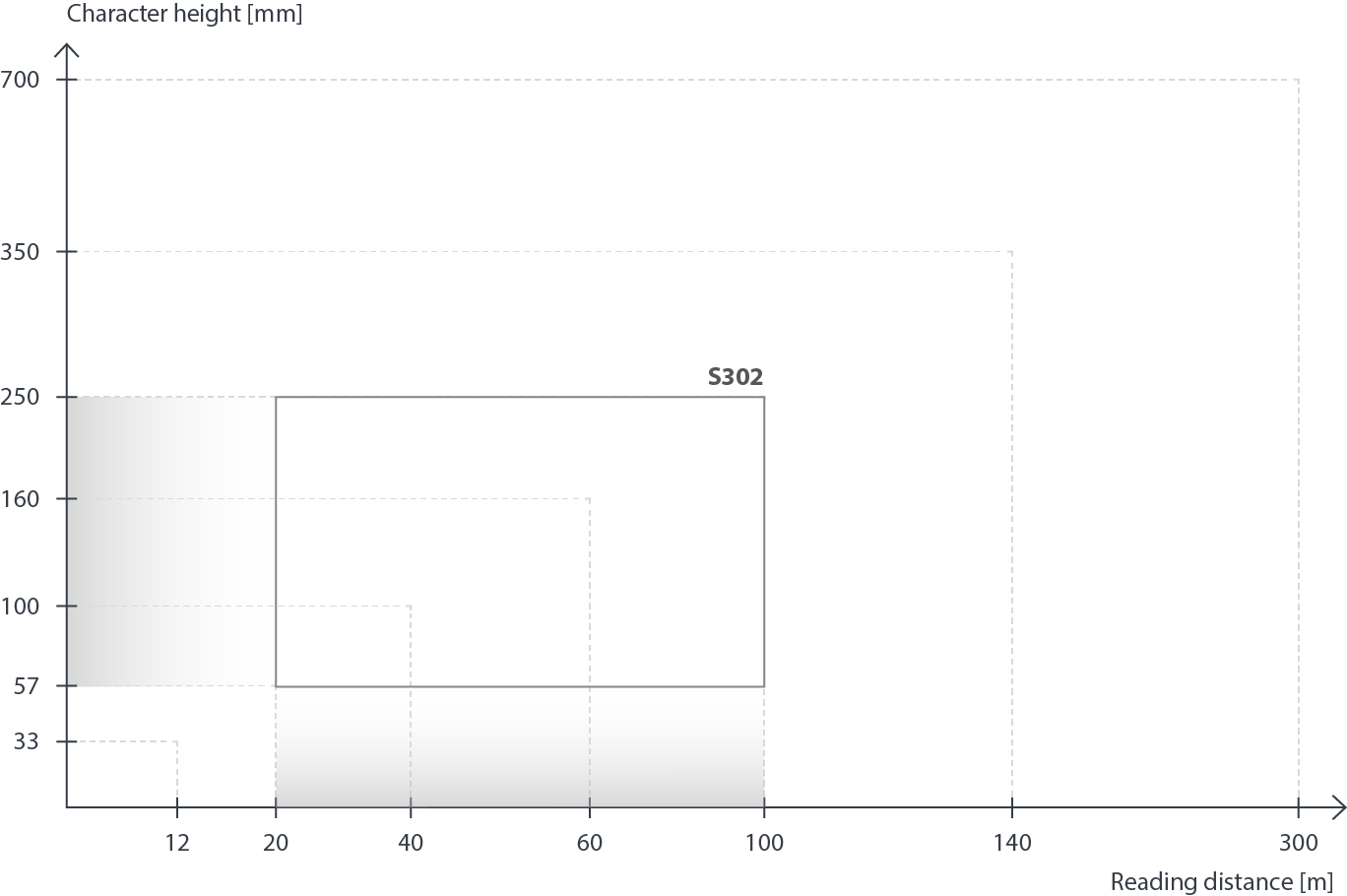

Reading distances




As a guideline for the maximum reading distance under good conditions:
Character height [mm] x 0.4 = reading distance [m].


For example a character height of 100 mm results in a reading distance of up to 40 m. The character height should not be chosen too small, especially outdoors where the size is subjectively felt smaller.



Character height

57 mm Unilaterally readable

  Two-sided readable

  Measures A x B


1 Digit

-

-

-


2 Digits

S302-02/06/0x-100/0A-xx

S302-02/06/0x-200/3A-xx

3001 x 185 mm


3 Digits

S302-03/06/0x-100/0A-xx

S302-03/06/0x-200/3A-xx

3001 x 185 mm


4 Digits

S302-04/06/0x-100/0A-xx

S302-04/06/0x-200/3A-xx

3001 x 185 mm

100 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-01/10/0x-100/0A-xx

S302-01/10/0x-200/3A-xx

330 x 245 mm

S302-02/10/0x-100/0A-xx

S302-02/10/0x-200/3A-xx

330 x 245 mm

S302-03/10/0x-100/0A-xx

S302-03/10/0x-200/3A-xx

480 x 245 mm

S302-04/10/0x-100/0A-xx

S302-04/10/0x-200/3A-xx

480 x 245 mm

160 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-01/16/0x-100/0A-xx

S302-01/16/0x-200/3A-xx

390 x 300 mm

S302-02/16/0x-100/0A-xx

S302-02/16/0x-200/3A-xx

390 x 300 mm

S302-03/16/0x-100/0A-xx

S302-03/16/0x-200/3A-xx

670 x 300 mm

S302-04/16/0x-100/0A-xx

S302-04/16/0x-200/3A-xx

670 x 300 mm

250 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-01/25/0x-100/0A-xx

S302-01/25/0x-200/3A-xx

570 x 400 mm

S302-02/25/0x-100/0A-xx

S302-02/25/0x-200/3A-xx

570 x 400 mm

S302-03/25/0x-100/0A-xx

S302-03/25/0x-200/3A-xx

1030 x 400 mm

S302-04/25/0x-100/0A-xx

S302-04/25/0x-200/3A-xx

1030 x 400 mm




Character height

57 mm Unilaterally readable

  Two-sided readable

  Measures A x B


5 Digits

S302-05/06/0x-100/0A-xx

S302-05/06/0x-200/3A-xx

4001 x 185 mm


6 Digits

S302-06/06/0x-100/0A-xx

S302-06/06/0x-200/3A-xx

4001 x 185 mm


7 Digits

S302-07/06/0x-100/0A-xx

S302-07/06/0x-200/3A-xx

5101 x 185 mm


8 Digits

S302-08/06/0x-100/0A-xx

S302-08/06/0x-200/3A-xx

5101 x 185 mm

100 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-05/10/0x-100/0A-xx

S302-05/10/0x-200/3A-xx

330 x 245 mm

S302-06/10/0x-100/0A-xx

S302-06/10/0x-200/3A-xx

330 x 245 mm

S302-07/10/0x-100/0A-xx

S302-07/10/0x-200/3A-xx

480 x 245 mm

S302-08/10/0x-100/0A-xx

S302-08/10/0x-200/3A-xx

480 x 245 mm

160 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-05/16/0x-100/0A-xx

S302-05/16/0x-200/3A-xx

960 x 300 mm

S302-06/16/0x-100/0A-xx

S302-06/16/0x-200/3A-xx

960 x 300 mm

S302-07/16/0x-100/0A-xx

S302-07/16/0x-200/3A-xx

1100 x 300 mm

-

-

-

250 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-05/25/0x-100/0A-xx

S302-05/25/0x-200/3A-xx

1500 x 400 mm

S302-06/25/0x-100/0A-xx

S302-06/25/0x-200/3A-xx

1500 x 400 mm

S302-07/25/0x-100/0A-xx

S302-07/25/0x-200/3A-xx

1730 x 400 mm

-

-

-

1 400 mm for units with Profi bus interface

img img

Standard units with dimension symbols



Character height

57 mm Unilaterally readable

  Two-sided readable

  Measures A x B


1 Digit + dimension2

-

-

-


2 Digits + dimension2

S302-F2/06/0x-100/0A-xx

S302-F2/06/0x-200/3A-xx

3001 x 185 mm


3 Digits + dimension2

S302-F3/06/0x-100/0A-xx

S302-F3/06/0x-200/3A-xx

3001 x 185 mm


4 Digits + dimension2

S302-F4/06/0x-100/0A-xx

S302-F4/06/0x-200/3A-xx

3001 x 185 mm

100 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-F1/10/0x-100/0A-xx

S302-F1/10/0x-200/3A-xx

330 x 245 mm

S302-F2/10/0x-100/0A-xx

S302-F2/10/0x-200/3A-xx

330 x 245 mm

S302-F3/10/0x-100/0A-xx

S302-F3/10/0x-200/3A-xx

480 x 245 mm

S302-F4/10/0x-100/0A-xx

S302-F4/10/0x-200/3A-xx

480 x 245 mm

160 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-F1/16/0x-100/0A-xx

S302-F1/16/0x-200/3A-xx

390 x 300 mm

S302-F2/16/0x-100/0A-xx

S302-F2/16/0x-200/3A-xx

390 x 300 mm

S302-F3/16/0x-100/0A-xx

S302-F3/16/0x-200/3A-xx

670 x 300 mm

S302-F4/16/0x-100/0A-xx

S302-F4/16/0x-200/3A-xx

670 x 300 mm

250 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-F1/25/0x-100/0A-xx

S302-F1/25/0x-200/3A-xx

570 x 400 mm

S302-F2/25/0x-100/0A-xx

S302-F2/25/0x-200/3A-xx

570 x 400 mm

S302-F3/25/0x-100/0A-xx

S302-F3/25/0x-200/3A-xx

1030 x 400 mm

S302-F4/25/0x-100/0A-xx

S302-F4/25/0x-200/3A-xx

1030 x 400 mm




Character height

57 mm Unilaterally readable

  Two-sided readable

  Measures A x B


5 Digit + dimension2

S302-F5/06/0x-100/0A-xx

S302-F5/06/0x-200/3A-xx

4001 x 185 mm


6 Digits + dimension2

S302-F6/06/0x-100/0A-xx

S302-F6/06/0x-200/3A-xx

5101 x 185 mm


7 Digits + dimension2

S302-F7/06/0x-100/0A-xx

S302-F7/06/0x-200/3A-xx

5101 x 185 mm

100 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-F5/10/0x-100/0A-xx

S302-F5/10/0x-200/3A-xx

680 x 245 mm

S302-F6/10/0x-100/0A-xx

S302-F6/10/0x-200/3A-xx

870 x 245 mm

S302-F7/10/0x-100/0A-xx

S302-F7/10/0x-200/3A-xx

870 x 245 mm

160 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-F5/16/0x-100/0A-xx

S302-F5/16/0x-200/3A-xx

960 x 300 mm

S302-F6/16/0x-100/0A-xx

S302-F6/16/0x-200/3A-xx

1100 x 300 mm

-

-

-

250 mm Unilaterally readable

  Two-sided readable

  Measures A x B

S302-F5/25/0x-100/0A-xx

S302-F5/25/0x-200/3A-xx

1500 x 400 mm

S302-F6/25/0x-100/0A-xx

S302-F6/25/0x-200/3A-xx

1730 x 400 mm

-

-

-

1 400 mm for units with Profi bus interface
2 Dimension symbols see table below


Subheader Icon Technical data interfaces

Data interface

Ethernet TCP/IP

Profinet

Profibus DP

Modbus RTU

Modbus TCP/IP

DeviceNet

Interbus Cu

RS485/RS232

20 mA TTY/RS232

BCD/binary

Analog

Counter

S302-xx/xx/xx-xxx/xx-E0

S302-xx/xx/xx-xxx/xx-YR

S302-xx/xx/xx-xxx/xx-K0

S302-xx/xx/xx-xxx/xx-M0

S302-xx/xx/xx-xxx/xx-YT

S302-xx/xx/xx-xxx/xx-YD

S302-xx/xx/xx-xxx/xx-CJ

S302-xx/xx/xx-xxx/xx-S0

S302-xx/xx/xx-xxx/xx-T0

S302-xx/xx/xx-xxx/xx-P0 (1 to 6 digits)

S302-xx/xx/xx-xxx/xx-A0 (2 to 5 digits)

S302-xx/xx/xx-xxx/xx-Z0 (2 to 8 digits)


LED color

White

Red

Red/green/yellow1

Green

Yellow

S302-xxx/xx/xW-xxx/xx-xx

S302-xxx/xx/xR-xxx/xx-xx

S302-xxx/xx/xM-xxx/xx-xx

S302-xxx/xx/xG-xxx/xx-xx

S302-xxx/xx/xY-xxx/xx-xx


1 Only in connection with character height 57 and 100 mm for indoor use

Subheader Icon Technical data Options

Options

LED for outdoor use

S302-xxx/xx/2x-xxx/xx-xx

Housing with two-layer coating

S302-xxx/xx/xx-x1x/xx-xx

Housing V2A (stainless steel), varnished

S302-xxx/xx/xx-x2x/xx-xx

Housing V2A (stainless steel), brushed

S302-xxx/xx/xx-x3x/xx-xx

Housing V4A (stainless steel), brushed

S302-xxx/xx/xx-x5x/xx-xx

Protection type IP65

S302-xxx/xx/xx-xx1/xx-xx

Protection type IP54 with climate control

S302-xxx/xx/xx-xx2/xx-xx

Protection type IP54 with climate control and heating

S302-xxx/xx/xx-xx4/xx-xx

Protective weather cover

S302-xxx/xx/xx-xxx/xx-xx-1011

Power supply 24 V DC

S302-xxx/xx/xx-xxx/xB-xx

Subheader Icon Technical data

Technical data

Power supply

230 V AC ±15 %, 50 Hz, optional 24 V DC ±15 % or 115 V AC ±15 %, 60 Hz

Housing

Steel sheet, optional stainless steel,
varnishing RAL 5002 ultramarine blue/RAL 7035 light grey

Protection class

IP54, optional IP65

Detailed technical data see operating instructions.
