LED Matrix for outdoor applications

The XC55 series is designed for outdoor use. It has a daylight capable LED matrix with automatic brightness control. The minimum and maximum brightness are individually adjustable. The housings have a weatherproof lacquer finish, in addition an integrated heater and a pressure compensation element ensure that no condensation water can occur in the housing with temperature fluctuations.


Standard units - Matrix P8



Type designation

LED matrix (resolution)

Serie XC55 - 64 x 16 Pixel

XC55-064.016.G1-C4A2-E1

64 x 16 Pixel

Serie XC55 - 96 x 16 Pixel

XC55-096.016.G1-C4A2-E1

96 x 16 Pixel

Serie XC55 - 128 x 16 Pixel

XC55-128.016.G1-C4A2-E1

128 x 16 Pixel

Display range

2 lines with 55 mm character height1

1 line with 110 mm character height1

Width x height x depth [mm]

600 x 235 x 150

860 x 235 x 150

1110 x 235 x 150



Type designation

LED matrix (resolution)

Serie XC55 - 192 x 16 Pixel

XC55-192.016.G1-C4A2-E1

192 x 16 Pixel

Serie XC55 - 256 x 16 Pixel

XC55-256.016.G1-C4A2-E1

256 x 16 Pixel

Display range

2 lines with 55 mm character height1

1 line with 110 mm character height1

Width x height x depth [mm]

1620 x 235 x 150

2140 x 235 x 150



Type designation

LED matrix (resolution)

Serie XC55 - 64 x 32 Pixel

XC55-064.032.G1-C4A2-E1

64 x 32 Pixel

Serie XC55 - 96 x 32 Pixel

XC55-096.032.G1-C4A2-E1

96 x 32 Pixel

Serie XC55 - 128 x 32 Pixel

XC55-128.032.G1-C4A2-E1

128 x 32 Pixel

Display range

4 lines with 55 mm character height1

2 lines with 110 mm character height1

1 line with 240 mm character height1

Width x height x depth [mm]

600 x 360 x 150

860 x 360 x 150

1110 x 360 x 150



Type designation

LED matrix (resolution)

Serie XC55 - 192 x 32 Pixel

XC55-192.032.G1-C4A2-E1

192 x 32 Pixel

Serie XC55 - 256 x 32 Pixel

XC55-256.032.G1-C4A2-E1

256 x 32 Pixel

Display range

4 lines with 55 mm character height1

2 lines with 110 mm character height1

1 line with 240 mm character height1

Width x height x depth [mm]

1620 x 360 x 150

2140 x 360 x 150


Type designation

LED matrix (resolution)

Serie XC55 - 128 x 48 Pixel

XC55-128.048.G1-C4A2-E1

128 x 48 Pixel

Serie XC55 - 192 x 48 Pixel

XC55-192.048.G1-C4A2-E1

192 x 48 Pixel

Serie XC55 - 256 x 48 Pixel

XC55-256.048.G1-C4A2-E1

256 x 48 Pixel

Display range

6 lines with 55 mm character height1

3 lines with 110 mm character height1

Width x height x depth [mm]

1110 x 490 x 150

1690 x 530 x 170

2200 x 530 x 170


Type designation

LED matrix (resolution)

Serie XC55 - 128 x 64 Pixel

XC55-128.064.G1-C4A2-E1

128 x 64 Pixel

Serie XC55 - 192 x 64 Pixel

XC55-192.064.G1-C4A2-E1

192 x 64 Pixel

Serie XC55 - 256 x 64 Pixel

XC55-256.064.G1-C4A2-E1

256 x 64 Pixel

Display range

8 lines with 55 mm character height1

4 lines with 110 mm character height1

2 lines with 240 mm character height1

Width x height x depth [mm]

1110 x 620 x 150

1690 x 660 x 170

2200 x 660 x 170


Type designation

LED matrix (resolution)

Serie XC55 - 256 x 96 Pixel

XC55-256.096.G1-C4E2-E12

256 x 96 Pixel

Display range

12 lines with 55 mm character height1

6 lines with 110 mm character height1

3 lines with 240 mm character height1

Width x height x depth [mm]

2200 x 920 x 204


Type designation

LED matrix (resolution)

Serie XC55 - 256 x 128 Pixel

XC55-256.128.G1-C4E2-E12

256 x 128 Pixel

Display range

16 lines with 55 mm character height1

8 lines with 110 mm character height1

4 lines with 240 mm character height1

Width x height x depth [mm]

2200 x 1180 x 204


1 The numbers of characters per line depends on the font selected.

2 Housings with rear doors and ventilation grills, rear or pendant mounting.


Standard units - Matrix P16



Type designation

LED matrix (resolution)

Serie XC55 - 32 x 16 Pixel

XC55-032.016.P1-C4A2-E1

32 x 16 Pixel

Serie XC55 - 48 x 16 Pixel

XC55-048.016.P1-C4A2-E1

48 x 16 Pixel

Serie XC55 - 64 x 16 Pixel

XC55-064.016.P1-C4A2-E1

64 x 16 Pixel

Display range

1 line with 220 mm character height1

Width x height x depth [mm]

600 x 360 x 150

860 x 360 x 150

1110 x 360 x 150



Type designation

LED matrix (resolution)

Serie XC55 - 96 x 16 Pixel

XC55-096.016.P1-C4A2-E1

96 x 16 Pixel

Serie XC55 - 128 x 16 Pixel

XC55-128.016.P1-C4A2-E1

128 x 16 Pixel

Display range

1 line with 220 mm character height1

Width x height x depth [mm]

1620 x 360 x 150

2140 x 360 x 150



Type designation

LED matrix (resolution)

Serie XC55 - 64 x 32 Pixel

XC55-064.032.P1-C4A2-E1

64 x 32 Pixel

Serie XC55 - 96 x 32 Pixel

XC55-096.032.P1-C4A2-E1

96 x 32 Pixel

Serie XC55 - 128 x 32 Pixel

XC55-128.032.P1-C4A2-E1

128 x 32 Pixel

Display range

2 lines with 220 mm character height1

1 line with 480 mm character height1

Width x height x depth [mm]

1110 x 620 x 150

1690 x 660 x 170

2200 x 660 x 170


Type designation

LED matrix (resolution)

Serie XC55 - 128 x 48 Pixel

XC55-128.048.P1-C4E2-E12

128 x 48 Pixel

Display range

3 lines with 220 mm character height1

Width x height x depth [mm]

2200 x 920 x 204


Type designation

LED matrix (resolution)

Serie XC55 - 128 x 64 Pixel

XC55-128.064.P1-C4E2-E12

128 x 64 Pixel

Display range

4 lines with 220 mm character height1

2 lines with 480 mm character height1

Width x height x depth [mm]

2200 x 1180 x 204


1 The numbers of characters per line depends on the font selected.

2 Housings with rear doors and ventilation grills, rear or pendant mounting.

Icon Fonts

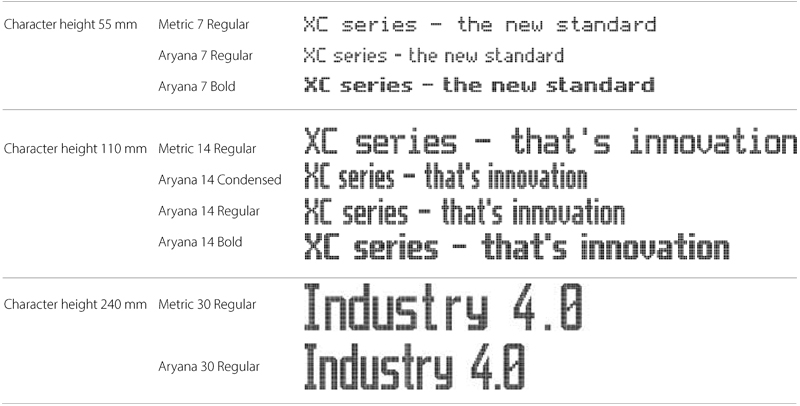

Fonts

The devices have typographically designed fonts. As in office programs, they provide a graphically and ergonomically perfect presentation of information, with narrow normal and bold fonts.

Serie XC55 - Fonts



The fonts «Metric» show each character with the same width (equidistant fonts).
The fonts «Aryana» are proportional fonts (recommended) and show each character only with the actually needed width – so one line can display more characters, as shown in the font samples above.
The following table shows how many characters can be displayed in one line, depending on the font selected.
The actual number of characters depends on the text to be displayed. The specifications are guide values.



Width of the LED matrix

Aryana 7 Regular

Aryana 7 Bold

Metric 7 Regular

Aryana 14 Condensed

Aryana 14 Regular

Aryana 14 Bold

Metric 14 Regular

Aryana 30 Regular

Metric 30 Regular

32 Px

6

4

5

5

4

3

3

2

2

64 Px

13

9

10

9

8

7

7

4

4

96 Px

19

14

16

14

13

10

10

6

6

128 Px

26

19

21

19

17

14

14

8

8

192 Px

39

28

32

29

26

20

21

13

12

256 Px

52

37

42

39

35

27

28

17

16



Depending on the pixel pitch of the LED matrix there are the following character heights:



Font

Aryana 7, Metric 7

Aryana 14, Metric 14

Aryana 30, Metric 30

Matrix P4

28 mm

55 mm

120 mm

Matrix P8

55 mm

120 mm

240 mm

Matrix P16

-

220 mm

480 mm


LED color

Brilliant luminous and freely configurable LED matrix.
LED color scale: Red, green, blue yellow, cyan, magenta, white, turquoise, black (LED off)

Subheader Icon Technical data Options

Options

The devices are optimized for professional use.
For further requirements corresponding options are possible.

Control

Standard

Optional

Ethernet

Additionally WLAN IEEE 802.11 b/g/n



XC55-xxx.xxx.xx-xxxx-W1

Housing

Standard

Optional

Steel sheet, electrolytically galvanized, weatherproofed double powder coating

Stainless steel V2A powder-coated (material 1.4301)

Stainless steel V4A powder-coated (material 1.4571)



XC55-xxx.xxx.xx-Gxxx-xx

XC55-xxx.xxx.xx-Mxxx-xx

Power supply

Standard

Optional

230 V AC ± 15 %, 50/60 Hz

115 V AC ± 15 %, 50/60 Hz



XC55-xxx.xxx.xx-xxx3-xx

Subheader Icon Technical data

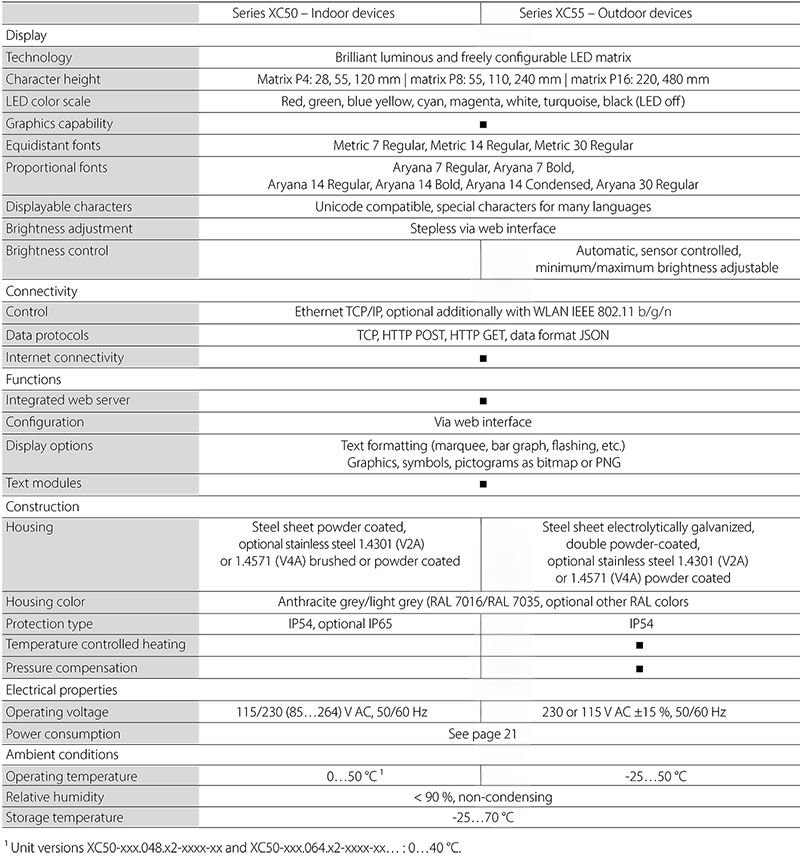

Technical data

Serie XC55 - Technical data

Power consumption

The performance data are approximate values in Watt.

Devices with matrix P8



Devices with matrix P16

XC55-064.016.G1-xxxx-xx

XC55-096.016.G1-xxxx-xx

XC55-128.016.G1-xxxx-xx

XC55-192.016.G1-xxxx-xx

XC55-256.016.G1-xxxx-xx

XC55-064.032.G1-xxxx-xx

XC55-096.032.G1-xxxx-xx

XC55-128.032.G1-xxxx-xx

XC55-192.032.G1-xxxx-xx

XC55-256.032.G1-xxxx-xx

XC55-128.048.G1-xxxx-xx

XC55-192.048.G1-xxxx-xx

XC55-256.048.G1-xxxx-xx

XC55-128.064.G1-xxxx-xx

XC55-192.064.G1-xxxx-xx

XC55-256.064.G1-xxxx-xx

XC55-256.096.G1-xxxx-xx

XC55-256.128.G1-xxxx-xx



60

75

95

130

190

95

130

190

300

370

320

470

560

340

560

710

1050

1350



XC55-032.016.P1-xxxx-xx

XC55-048.016.P1-xxxx-xx

XC55-064.016.P1-xxxx-xx

XC55-096.016.P1-xxxx-xx

XC55-128.016.P1-xxxx-xx

XC55-064.032.P1-xxxx-xx

XC55-096.032.P1-xxxx-xx

XC55-128.032.P1-xxxx-xx

XC55-128.048.P1-xxxx-xx

XC55-128.064.P1-xxxx-xx



95

130

190

300

370

340

560

710

1050

1350

Dimensions and weights



Series XC55 – Outdoor devices

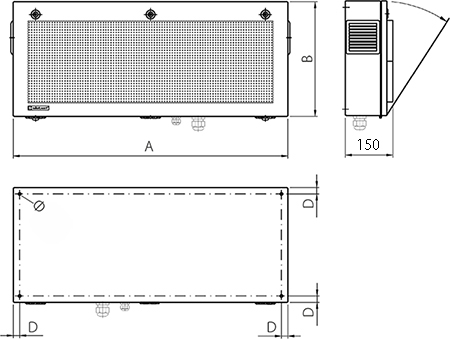

The following figure shows unit version XC55-096.032.G1-xxAx-xx representing the other devices listed in the table. Dimensions in mm. The weights are approximate values in kg.



Devices with matrix P8

XC55-064.016.G1-xxAx-xx

XC55-096.016.G1-xxAx-xx

XC55-128.016.G1-xxAx-xx

XC55-192.016.G1-xxAx-xx

XC55-256.016.G1-xxAx-xx

XC55-064.032.G1-xxAx-xx

XC55-096.032.G1-xxAx-xx

XC55-128.032.G1-xxAx-xx

XC55-192.032.G1-xxAx-xx

XC55-256.032.G1-xxAx-xx

XC55-128.048.G1-xxAx-xx

XC55-128.064.G1-xxAx-xx

A

600

860

1110

1620

2140

600

860

1110

1620

2140

1110

1110

B

235

235

235

235

235

360

360

360

360

360

490

620

D

16

16

20

20

25

16

20

20

25

25

25

25

Ø

7

7

9

9

11

7

9

9

11

11

11

11

Weight

9

12

16

24

32

13

17

22

32

42

28

34



Devices with matrix P16

XC55-032.016.P1-xxAx-xx

XC55-048.016.P1-xxAx-xx

XC55-064.016.P1-xxAx-xx

XC55-096.016.P1-xxAx-xx

XC55-128.016.P1-xxAx-xx

XC55-064.032.P1-xxAx-xx

A

600

860

1110

1620

2140

1110

B

360

360

360

360

360

620

D

16

20

20

25

25

25

Ø

7

9

9

11

11

11

Weight

13

17

23

33

43

35

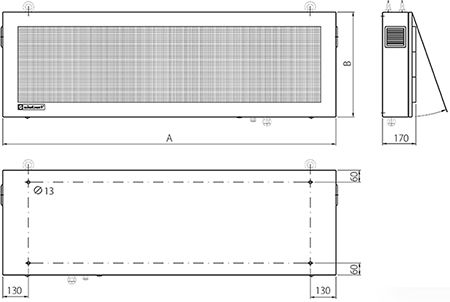

The following figure shows unit version XC55-192.048.G1-xxEx-xx representing the other devices listed in the table. Dimensions in mm. The weights are approximate values in kg.



Devices with matrix P8

XC55-192.048.G1-xxEx-xx

XC55-256.048.G1-xxEx-xx

XC55-192.064.G1-xxEx-xx

XC55-256.064.G1-xxEx-xx

A

1690

2200

1690

2200

B

530

530

660

660

Weight

58

75

72

93



Devices with matrix P16

XC55-096.032.P1-xxEx-xx

XC55-128.032.P1-xxEx-xx

A

1690

2200

B

660

660

Weight

74

96

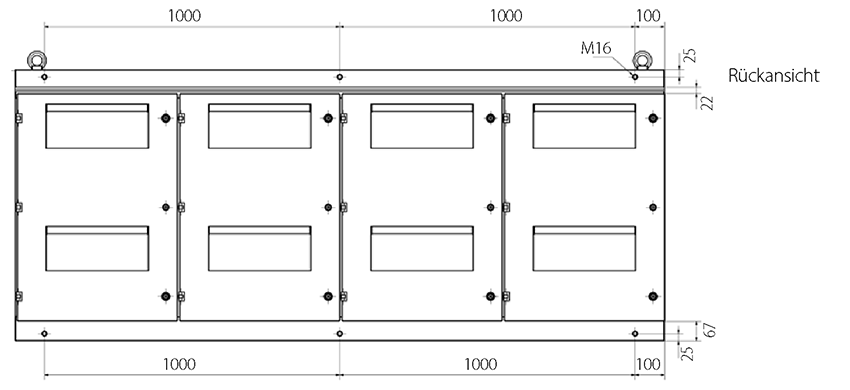

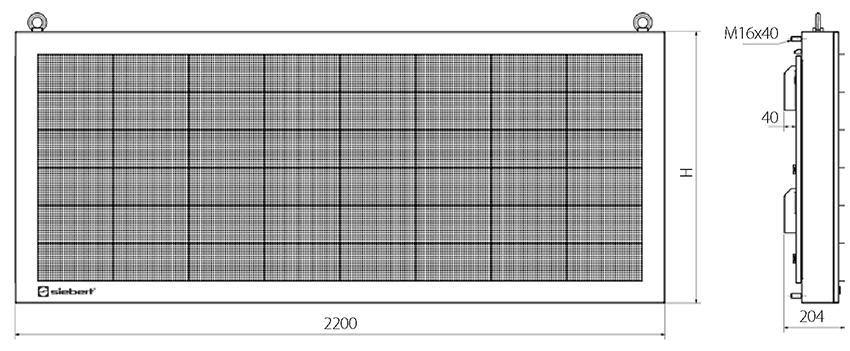

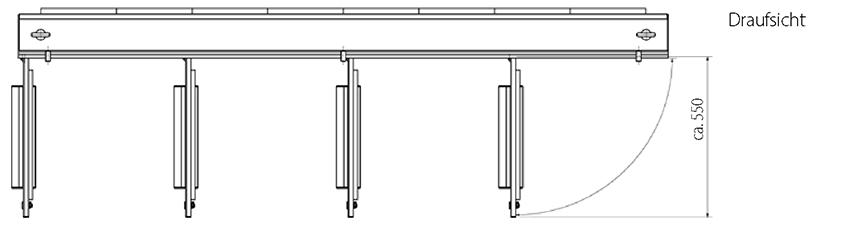

The following figure shows unit version XC55-256.096.G1-xxEx-xx representing the other devices listed in the table. Dimensions in mm. The weights are approximate values in kg.

Devices with matrix P8

XC55-256.096.G1-xxEx-xx

XC55-256.128.G1-xxEx-xx

H

920

1180

Weight

160

200



Devices with matrix P16

XC55-096.032.P1-xxEx-xx

XC55-128.032.P1-xxEx-xx

H

1690

2200

Weight

74

96
