XC-Boards®

XC-Boards® are individual branch solutions for process-oriented visualization. They are based on the components of the series program and are designed in consultation with the customer. Extensive experience in the development of digital displays results in professional solutions which have been proving themselves in worldwide use.

For production and employee information

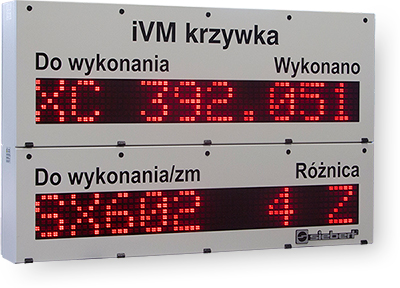

SERIES

XC-Board® 0392.051-002

DISPLAY

2 x 160 mm, LED red

MEASURES (W x H x D)

1570 x 1000 x 240 mm

SERIES

XC-Board® 0402.073

DISPLAY

LED red

MEASURES (W x H x D)

1200 x 1210 x 130 mm


SERIES

XC-Board® 0410.394

DISPLAY

LED red

MEASURES (W x H x D)

2020 x 940 x 130 mm

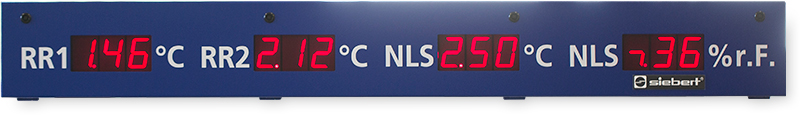

SERIES

XC-Board® 0404.804

DISPLAY

LED red

MEASURES (W x H x D)

1800 x 185 x 110 mm

SERIES

XC-Board® 0410.128

DISPLAY

LED red

MEASURES (W x H x D)

2150 x 1600 x 165 mm


SERIES

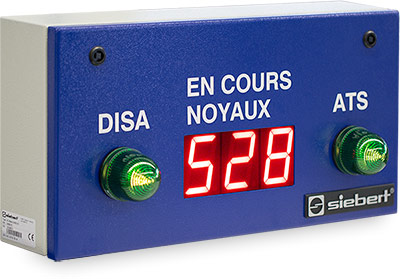

XC-Board® 0408.015 / 0408.878

DISPLAY

LED red

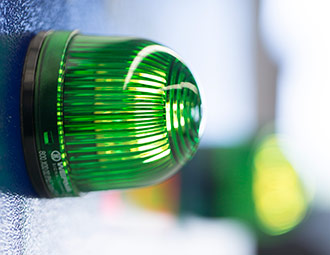

2 lamps, diameter 50 mm, green

MEASURES (W x H x D)

480 x 245 x 110 mm


SERIES

XC-Board® 0407.949

DISPLAY

LED red

MEASURES (W x H x D)

1450 x 730 x 110 mm

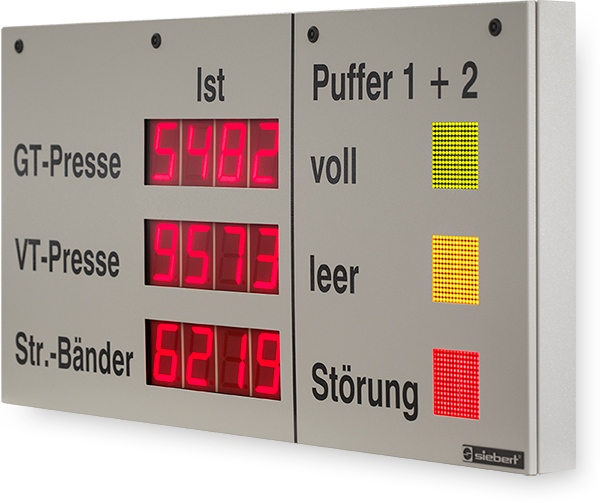

FEATURES

3 x luminous fields 120 x 120 mm


SERIES

XC-Board® 0406.201

DISPLAY

100 mm, LED red

MEASURES (W x H x D)

1060 x 650 x 170 mm

FEATURES

Double-sided display

SERIES

S302-02/10/0R-100/1A-S0-1391

DISPLAY

LED red

MEASURES (W x H x D)

480 x 245 x 110 mm

FEATURES

Any display is serially numbered


SERIES

XC-Board® 0405.833

DISPLAY

LED red and red/green/orange

MEASURES (W x H x D)

1700 x 460 x 130 mm


SERIES

XC-Board® 0407.217

DISPLAY

LED red

MEASURES (W x H x D)

480 x 245 x 110 mm

FEATURES

Luminous fields 120 x 120 mm LED red and green, super bright


SERIES

SCD300-289-1/V2

DISPLAY

57 mm, LED red

MEASURES (W x H x D)

300 x 400 x 120 mm


SERIES

XC-Board® 0400.294

DISPLAY

250 mm, LED red

MEASURES (W x H x D)

1540 x 2060 x 165 mm


SERIES

XC-Board® 0408.492

DISPLAY

57 mm, LED red

MEASURES (W x H x D)

770 x 730 x 170 mm


SERIES

XC-Board® 0408.127

DISPLAY

100 mm, LED super bright, red

MEASURES (W x H x D)

1300 x 1300 x 110 mm

SERIES

XC-Board® 0406.442

DISPLAY

100 mm, LED red

MEASURES (W x H x D)

1060 x 730 x 110 mm

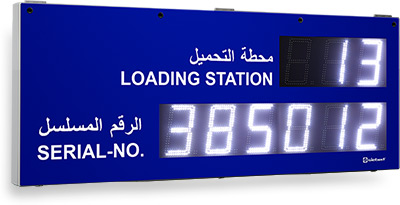

SERIES

XC-Board®

DISPLAY

250 mm, LED super bright, white

MEASURES (W x H x D)

2240 x 950 x 110 mm

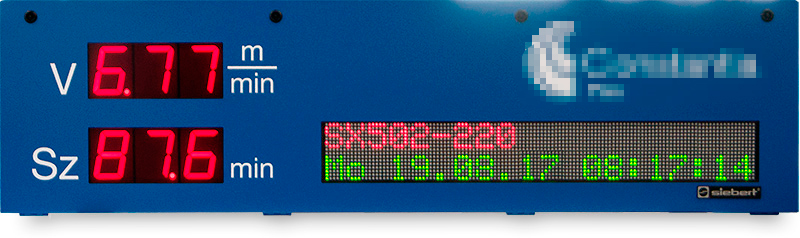

SERIES

XC-Board® SX502-840/05/0M-xxx

DISPLAY

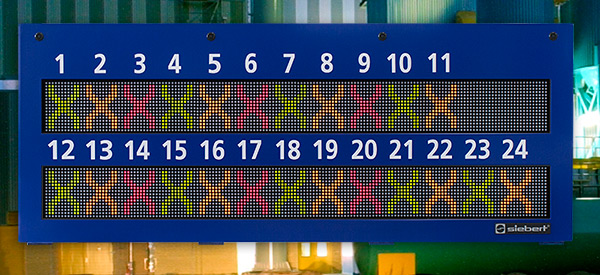

LED red/green/orange

MEASURES (W x H x D)

2330 x 850 x 170 mm


SERIES

XC-Board® 0408.511
SX502-426/05/0M-110/0A-YT-1464

DISPLAY

LED red/green/orange

MEASURES (W x H x D)

1345 x 530 x 130 mm
