Series S102 Weighing technology

Build-in units for weighing technology

The compact displays in their build-in housing of 96 x 48 mm are a special version of the series S102 and they are compatible with the weighing systems Siemens Siwarex and Phoenix Contact. They have status LEDs for .Net, Tara, -0-, >< and the weighing ranges.


Standard units

14 mm Character height

Type designation

6 Digits

S102-W6/14/0x-000/0B-xx

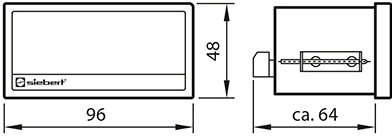

Dimensions in mm


Data interface

Siemens Siwarex FTA

Siemens Siwarex U, M, A, CS

Phoenix Contact IB IL SGI-2/P (-PAC)

S102-W6/14/0x-000/0B-SM

S102-W6/14/0x-000/0B-TM

S102-W6/14/0x-000/0B-SL


LED color

Red

Green

S102-xx/xx/xR-xxx/xx-xx

S102-xx/xx/xG-xxx/xx-xx


Options

Protection type IP651

S102-xx/xx/xx-xx1/xx-xx

1 Applies to S102-xx/14/xx-xxx/xx-xx
Subheader Icon Technical data

Technical data

Power supply

24 V DC ±15 %, reverse polarity protected, galvanically isolated

Protection class

IP65 front-sided

Connecting technology

Plug-in screw-type terminals, Profibus 9-pin sub-D socket

Detailed technical data see operating instructions.
