Numeric large size displays for Profinet

With technical perfection and innovative details the S302 series sets a standard for professional large size displays. The wide range of types covers devices with up to 8 digits, character heights from 57 to 250 mm.

S302 Profinet White LED

Comfortable parameterization

The displays are fully parameterized with an engineering framework, for example Totally Integrated Automation (TIA) Siemens portal. This permits the parameterization even in mounted condition.


Integrated switch

The devices have two RJ45 sockets and an integrated IRT-ready switch in accordance with the conformance class CC-C.


Smart-Dot-Function

If the Smart-Dot-Function is activated the display moves the decimal point automatically, so that the value before decimal point is automatically displayed. The decimal places are either truncated or rounded.
To display a date or a code several decimal points can be displayed also.



S302 Profinet Smart Dot

Different presentational attribute

Values can be displays left-justified or right-justified. There are also different flashing modes to choose.

An automatic change in presentation is possible as well as when exceeding two threshold values or when falling below two threshold values. If for example the limit value is exceeded the value is flashing in the display. When the value returns to a value within the threshold the value shines permanently on the display again.

S302 Profinet Doublesided

Readable one- or double-sided

The large size displays are offered either with a one- or a double-sided display. The versions with a double-sided display have a LED display and show the same information on both sides.

Display overflow and underflow

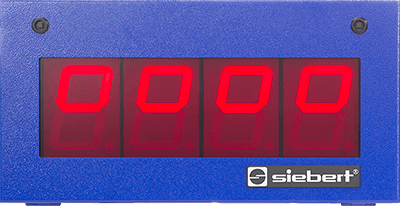

If the display receives values which can not be displayed the following signs appear in the display.


Unit conversion function

A formula, which can be stored in the display, allows the displaying of values in other measuring units, for example degrees Fahrenheit in degrees Celsius or kilograms to tons.

Leading zeros

The numbers of the leading zeros can be set individually.

Extended character set

Among the digits the character set also contains the other letters and special characters which can be displayed with a 7-segment matrix.


S302 Profinet with Dimension

Dimension symbols

Displays with dimension symbols are available. The shown dimension symbols are available.


S302 Profinet
