Series XC695

Series XC695

The text display is the eye-catcher

The displays visualize the number of accident-free days and, depending on the version, also other key-figures of the company accident statistics. Additionally, they have a text display with which further functions are possible.


Technical data

Display
Technology Brilliant luminous LED dot matrix in SMD technology
LED color scale Red, green, blue, yellow, cyan, magenta, white, turquoise, orange
Equidistant fonts Metric 7 Regular, Metric 14 Regular
Proportional fonts Aryana 7 Regular, Aryana 7 Bold, Aryana 14 Regular, Aryana 14 Bold, Aryana 14 Condensed
Brightness settings Stepless via web interface
Brightness control Automatic, minimum / maximum brightness adjustable via web interface
Reading distance max. 45 m

Numeric display
Resolution 32 x 16 pixel per numeric display
Digit height 110 mm (fonts Aryana 14 Condensed)
Number of digits Max. 4 per numeric display (fonts Aryana 14 Condensed)

Text display
Resolution 128 x 16 pixel
Digit height 55 or 110 mm (depending on font)
Display options Text formatting: marquee, bar graph, flashing, graphics, symbols, pictograms (Bitmap, PNG)
Text modules

Connectivity
Control Ethernet TCP/IP, optional WLAN IEEE 802.11 b/g/n
Web connectivity

Functions
Integrated Web server
Configuration Via Web interface

Housing
Width x height x depth 1180 x 930 x 110 mm
Construction Flat housing in professional industrial design,
front frame opening upwards with pneumatic springs
Mounting Wall mounting with internal fastening elements
Material Steel sheet, powder coated,
optional stainless steel material number 1.4301 (V2A), powder coated
Weight approx. 52 kg
Housing color Light grey (RAL 7035),
front frame laminated with weatherproof foil in customized design
Protection type IP54
Temperature controlled heating
Climate compensation

Electrical properties
Power supply 100...240V AC, 50...60Hz
Power consumption max. 200 W

Ambient conditions
Operating temperature -25...50 °C
Storage temperature -25...70 °C
Relative humidity < 90 %, not condensing
Subheader Icon Technical data LED Colors

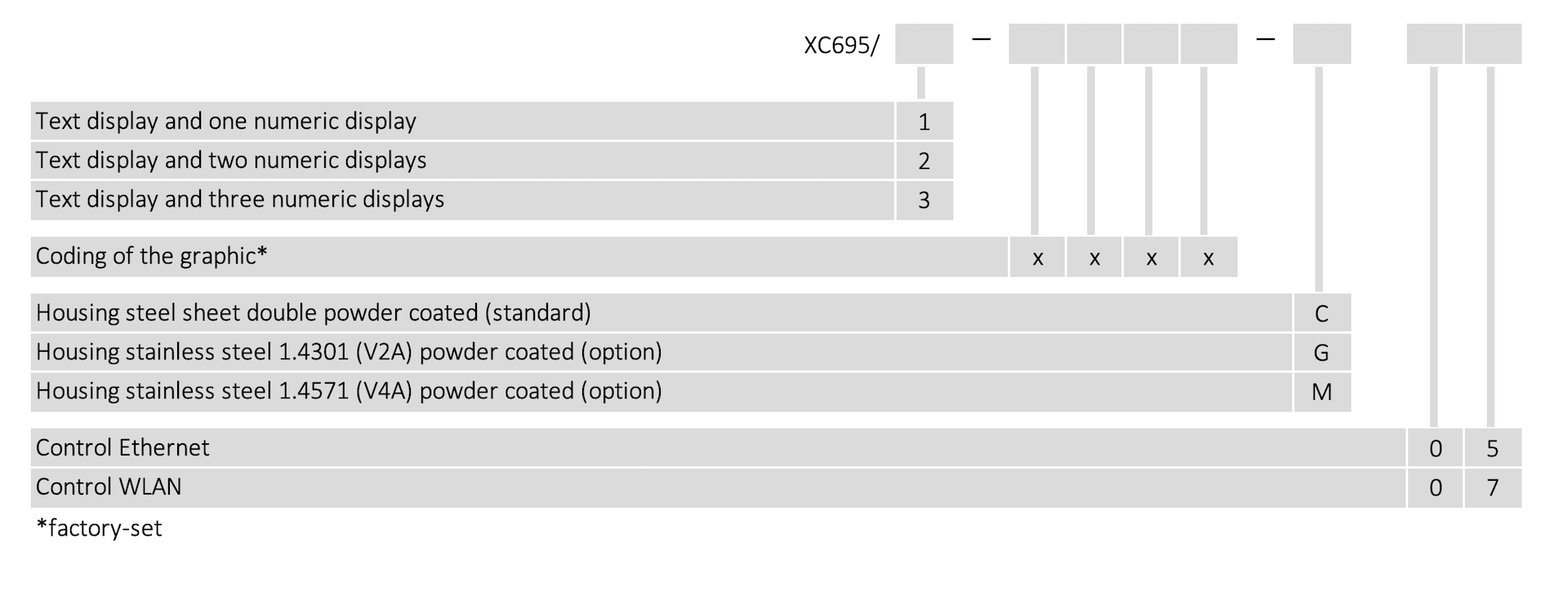

Order code

Order code
Subheader Icon Technical data LED Colors

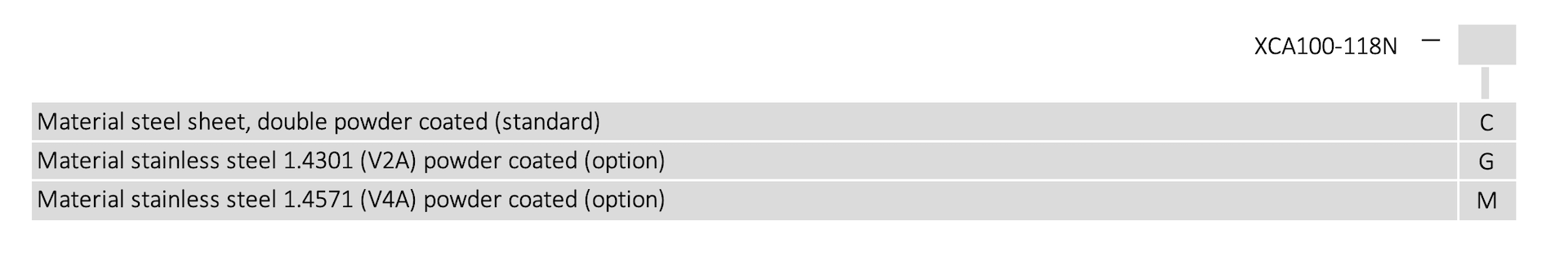

Optional equipment

Protective weather cover
Width x height x depth 1180 x 55 x 140 mm
Material Steel sheet, powder coated,
optional stainless steel material number 1.4301 (V2A), powder coated
Weight approx. 5 kg


Order code options

Request a noncomittal
offer now
