Design in large format

The XC680 series combines a representative large size and individual design. The 100 mm high digits are especially suitable for long reading distances up to 40 meters.

Eye symbol indicating reading distance

Reading distances


As a guideline for the maximum reading distance under good conditions:
Character height [mm] x 0.4 = reading distance [m].


For example a character height of 100 mm results in a reading distance of up to 40 m. The character height should not be chosen too small, especially outdoors where the size is subjectively felt smaller.


Standard units

Type code

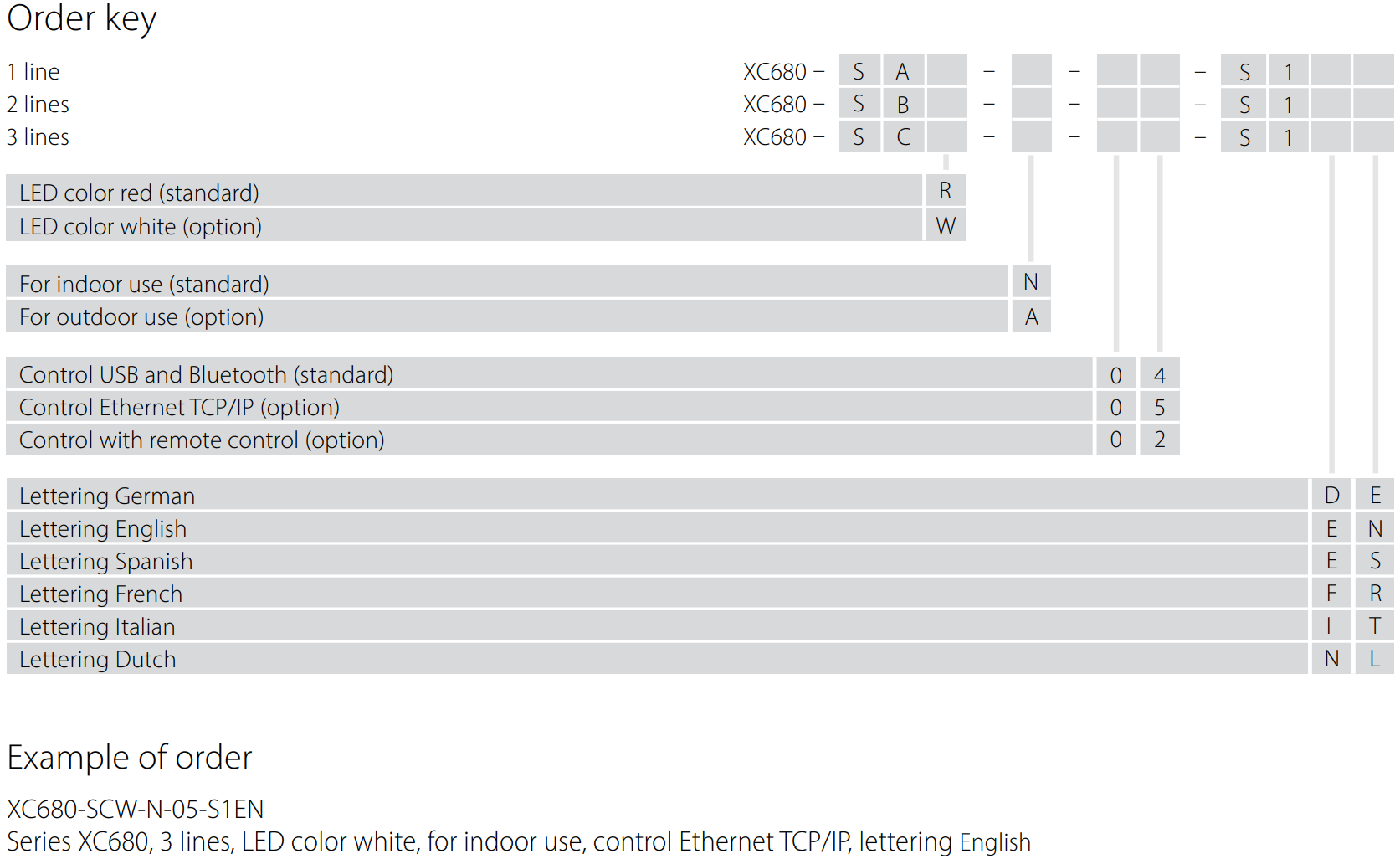

XC680-SxW-x-xx

LED display character height

100 mm

LED color

White

Display range : 1 x 4 digits

XC680-SAW-x-xx

Display range : 2 x 4 digits

XC680-SBW-x-xx

Display range : 3 x 4 digits

XC680-SCW-x-xx

Measures W x H x D

1000 x 1000 x 62 mm

Power consumption

approx. 100W max.

Weight

approx. 18 kg

Subheader Icon Technical data interfaces

Data interface

USB-C/Bluetooth

IR remote control

Ethernet TCP/IP

WLAN Access Point   Logo Wifi

WLAN Bridge   Logo Wifi

XC680-Sxx-x-04

XC680-Sxx-x-02

XC680-Sxx-x-05

XC680-Sxx-x-xx-18x0

XC680-Sxx-x-xx-18x1

Subheader Icon Technical data LED Colors

LED color

White

Red

XC680-SxW-x-xx

XC680-SxR-x-xx



Options

Key switch reset accident-free days

XC680-Sxx-x-xx-1336

Equipment package for outdoor use

XC680-Sxx-A-xx

WLAN Bridge with multiple receivers

XC680-Sxx-x-xx-18xx

1 customer logo on standard design

XC680-Sxx-x-xx-S90xxx

2 or 3 customer logos on standard design

XC680-Sxx-x-xx-S91xxx

Individual foil design

XC680-Sxx-x-xx-S99xxx


Technical data

Power supply

100...240V AC, 50...60Hz

Housing

aluminum,
front acrylic glass

Protection class

IP40 (IP54)

Values in ( ) brackets are valid for devices with optional equipment package for outdoor use.
Detailed technical data see operating instructions.
