Robust digital displays for public areas

The digital displays of the XC660/XC670 series are especially suitable for sites in public areas or in harsh environments.

Eye symbol indicating reading distance

Reading distances


As a guideline for the maximum reading distance under good conditions:
Character height [mm] x 0.4 = reading distance [m].


For example a character height of 100 mm results in a reading distance of up to 40 m. The character height should not be chosen too small, especially outdoors where the size is subjectively felt smaller.


Standard units

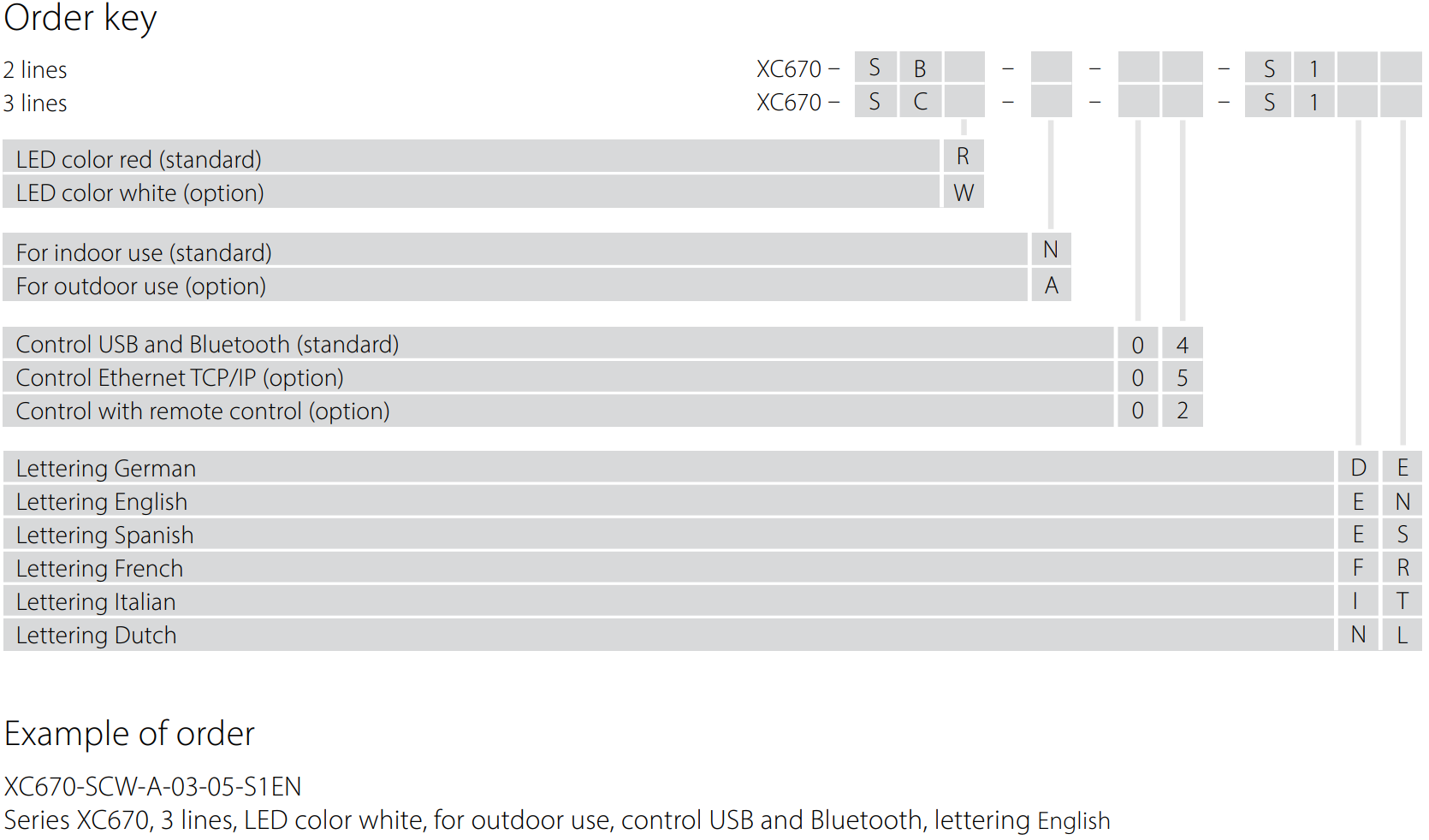

Type code

XC660-Lxx-x-xx

XC670-Lxx-x-xx

LED display character height

25 mm

55 mm

LED color

White

White

Display range : 1 x 4 digits

XC660-LAW-N-xx

XC670-LAW-N-xx

Display range : 2 x 4 digits

XC660-LBW-N-xx

XC670-LBW-N-xx

Display range : 3 x 4 digits

XC660-LCW-N-xx

XC670-LCW-N-xx

Measures W x H x D

800 x 500 x 70 mm

1000 x 800 x 70 mm

Power consumption

25W max.

50W max.

Weight

approx. 18 kg

approx. 32 kg


Data interface

Serial

Ethernet TCP/IP

XC660-Lxx-x-01

XC670-Lxx-x-05

XC660-Lxx-x-01

XC670-Lxx-x-05


LED color

White

Red

XC660-LxW-x-xx

XC670-LxR-x-xx

XC660-LxW-x-xx

XC670-LxR-x-xx


Options

Red

XC660-xxR-x-xx

XC670-xxR-x-xx

Ethernet TCP/IP

XC660-xxx-x-05

XC670-xxx-x-05

WLAN

XC660-xxx-x-07

XC670-xxx-x-07

Bluetooth

XC660-xxx-x-B1

XC670-xxx-x-B1

Key switch reset accident-free days

XC660-xxx-A-xx-1336

XC670-xxx-A-xx-1336

Equipment package for outdoor use

XC660-xxx-A-xx

XC670-xxx-A-xx

1 customer logo on standard design

XC660-xxx-x-xx-S90xxx

XC670-xxx-x-xx-S90xxx

2 or 3 customer logos on standard design

XC660-xxx-x-xx-S91xxx

XC670-xxx-x-xx-S91xxx

Individual foil design

XC660-xxx-x-xx-S99xxx

XC670-xxx-x-xx-S99xxx


Technical data

Power supply

100...240V AC, 50...60Hz

Housing

steel sheet varnished,
front film coated

Protection class

IP54 (IP65)

Values in ( ) brackets are valid for devices with optional equipment package for outdoor use.
Detailed technical data see operating instructions.
