Representative digital displays with a clear design language

With their exclusive design Siebert digital displays of the XC640 series evoke the interest of the public to communicate the commitment of the investor. Together with the slim aluminum housings they form an object which adapts itself harmoniously in the respective ambience.

Eye symbol indicating reading distance

Reading distances


As a guideline for the maximum reading distance under good conditions:
Character height [mm] x 0.4 = reading distance [m].


For example a character height of 100 mm results in a reading distance of up to 40 m. The character height should not be chosen too small, especially outdoors where the size is subjectively felt smaller.


Standard units

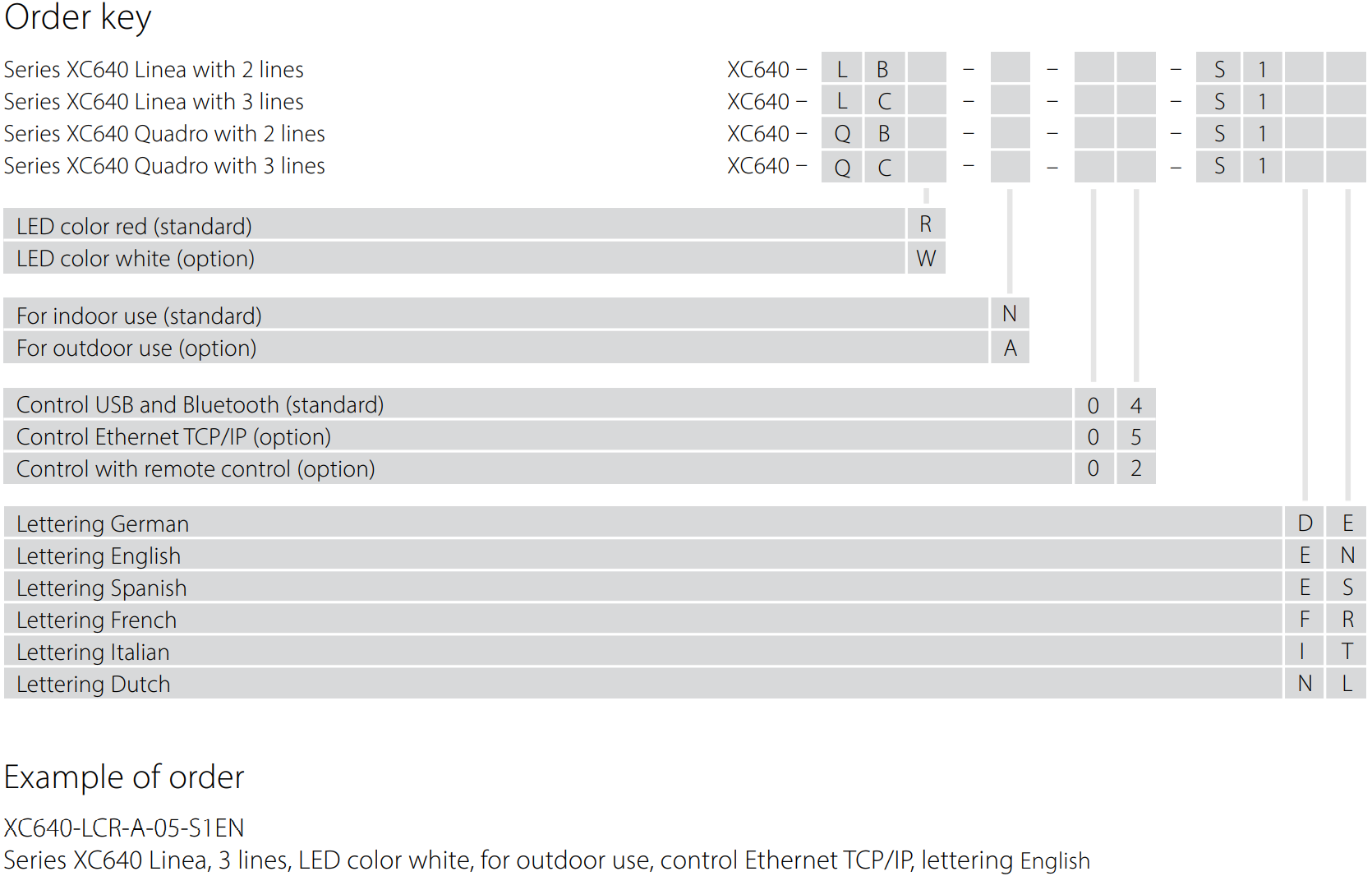

Type code - Linea

XC640-Lxx-x-xx

Type code - Galeria

XC640-Gxx-x-xx

Type code - Quadro

XC640-Qxx-x-xx

LED display character height

25 mm

LED color

White

Display range : 1 x 4 digits

XC640-xAW-N-xx

Display range : 2 x 4 digits

XC640-xBW-N-xx

Display range : 3 x 4 digits

XC640-xCW-N-xx

Measures W x H x D - Linea

800 x 450 x 62 mm

Measures W x H x D - Galeria

450 x 800 x 62 mm

Measures W x H x D - Quadro

800 x 800 x 62 mm

Power consumption

25W max.

Weight - Linea / Galeria

approx. 7 kg

Weight - Quadro

approx. 11 kg


Data interface

Serial

Ethernet TCP/IP

XC640-xxx-x-01

XC640-xxx-x-05


LED color

White

Red

XC640-xxW-x-xx

XC640-xxR-x-xx


Options

Red

XC640-xxR-x-xx

Ethernet TCP/IP

XC640-xxx-x-05

WLAN

XC640-xxx-x-07

Bluetooth

XC640-xxx-x-B1

Key switch reset accident-free days

XC640-xxx-A-xx-1336

Equipment package for outdoor use

XC640-xxx-A-xx

1 customer logo on standard design

XC640-xxx-x-xx-S90xxx

2 or 3 customer logos on standard design

XC640-xxx-x-xx-S91xxx

Individual foil design

XC640-xxx-x-xx-S99xxx


Technical data

Power supply

100...240V AC, 50...60Hz

Housing

aluminum,
front acrylic glass

Protection type

IP40 (IP54)

Values in ( ) brackets are valid for devices with optional equipment package for outdoor use.
Detailed technical data see operating instructions.
