Compact digital displays with large digits

With large digits the XC630 series awakes special attention.

Eye symbol indicating reading distance

Reading distances


As a guideline for the maximum reading distance under good conditions:
Character height [mm] x 0.4 = reading distance [m].


For example a character height of 100 mm results in a reading distance of up to 40 m. The character height should not be chosen too small, especially outdoors where the size is subjectively felt smaller.


Standard units

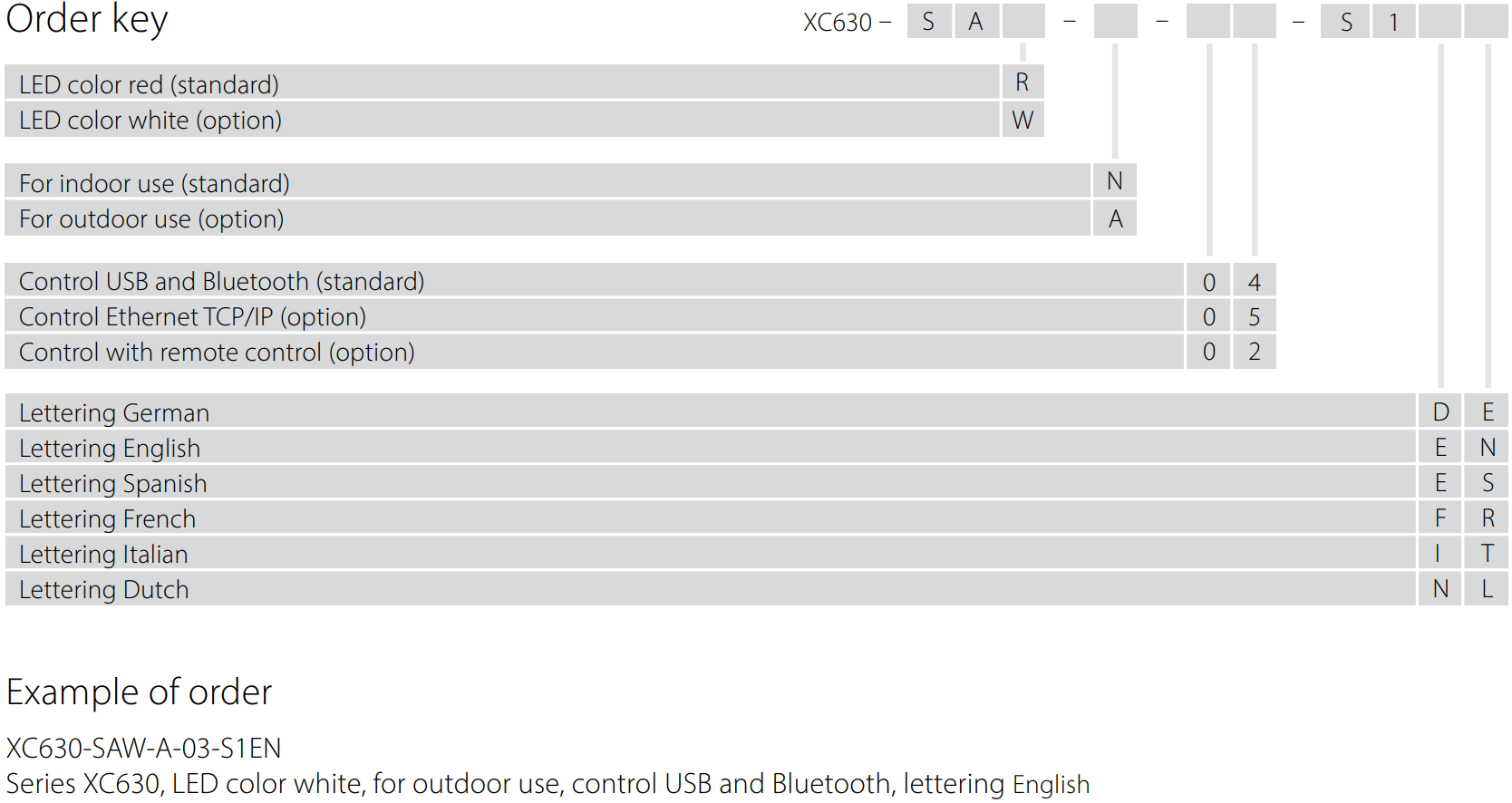

Type code

XC630-SAx-x-xx

LED display character height

55 mm

LED color

Red

Display range : 1 x 4 digits

XC630-SAR-N-xx

Measures W x H x D

600 x 400 x 62 mm

Power consumption

25W max.

Weight

approx. 4 kg

Subheader Icon Technical data interfaces

Data interface

Serial

Ethernet TCP/IP

XC630-Sxx-N-01

XC630-Sxx-N-05

Subheader Icon Technical data LED Colors

LED color

White

Red

XC630-SxW-N-xx

XC630-SxR-N-xx



Options

White

XC630-SxW-N-xx

Ethernet TCP/IP

XC630-Sxx-N-05

WLAN

XC630-Sxx-N-07

Bluetooth

XC630-Sxx-N-B1

Key switch reset accident-free days

XC630-Sxx-N-xx-1336

Equipment package for outdoor use

XC630-Sxx-A-xx

1 customer logo on standard design

XC630-Sxx-N-xx-S90xxx

2 or 3 customer logos on standard design

XC630-Sxx-N-xx-S91xxx

Individual foil design

XC630-Sxx-N-xx-S99xxx


Technical data

Power supply

100...240V AC, 50...60Hz

Housing

aluminum,
front acrylic glass

Protection type

IP40 (IP54)

Values in ( ) brackets are valid for devices with optional equipment package for outdoor use.
Detailed technical data see operating instructions.
