Series XC620

Compact digital displays with innovative technology

The XC620 series combines innovative technology with compact dimensions – for both the indoor and outdoor use.


Technical data

Display
Technology Brilliant luminous LED-display
LED color Red, optional White
Font Seven segment
Brightness settings Adjustable in the Configurator or via the IR remote control
Brightness control Automatic, minimum/maximum brightness adjustable in Configurator (displays with IR remote control are only manually adjustable)
Number of lines 1, 2 or 3
Reading distance max. 10 m

Digits
Height 25 mm
Amount 4 per line

Connectivity
Control USB-C, optional Ethernet TCP/IP, optional IR remote control, optional WLAN Access Point/WLAN Bridge (multiple receivers possible)

Housing
Width x height x depth 400 x 280 x 62 mm
Construction Aluminum/acrylic glass backside laminated
Weight approx. 3 kg
Protection type IP40 (indoor devices)
IP54 (outdoor devices)
Climate compensation (outdoor devices)

Electrical properties
Power consumption max. 25 W
Power supply 100...240V AC, 50...60Hz

Ambient conditions
Area of application Indoor, optional outdoor
Operating temperature 0...40 °C (indoor devices)
-20...50 °C (outdoor devices)
Storage temperature -25...85 °C
Relative humidity < 90 %, not condensing

Subheader Icon Order Code

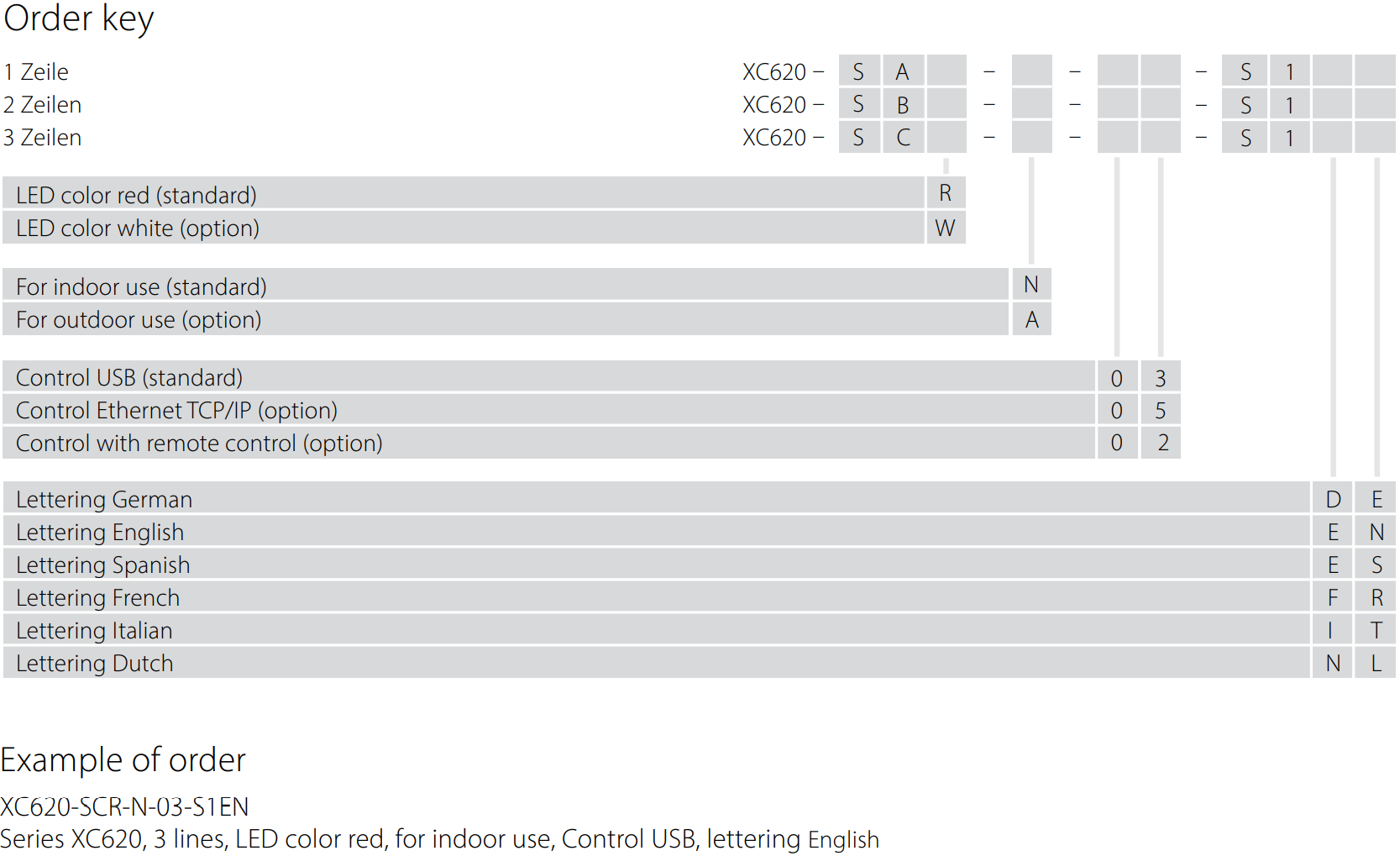

Order code

Order code
