Digital displays made of glass and stainless steel

The combination of glass and stainless steel makes the digital displays of the XC610 series to most representative objects of design.

Eye symbol indicating reading distance

Reading distances


As a guideline for the maximum reading distance under good conditions:
Character height [mm] x 0.4 = reading distance [m].


For example a character height of 100 mm results in a reading distance of up to 40 m. The character height should not be chosen too small, especially outdoors where the size is subjectively felt smaller.


Standard units

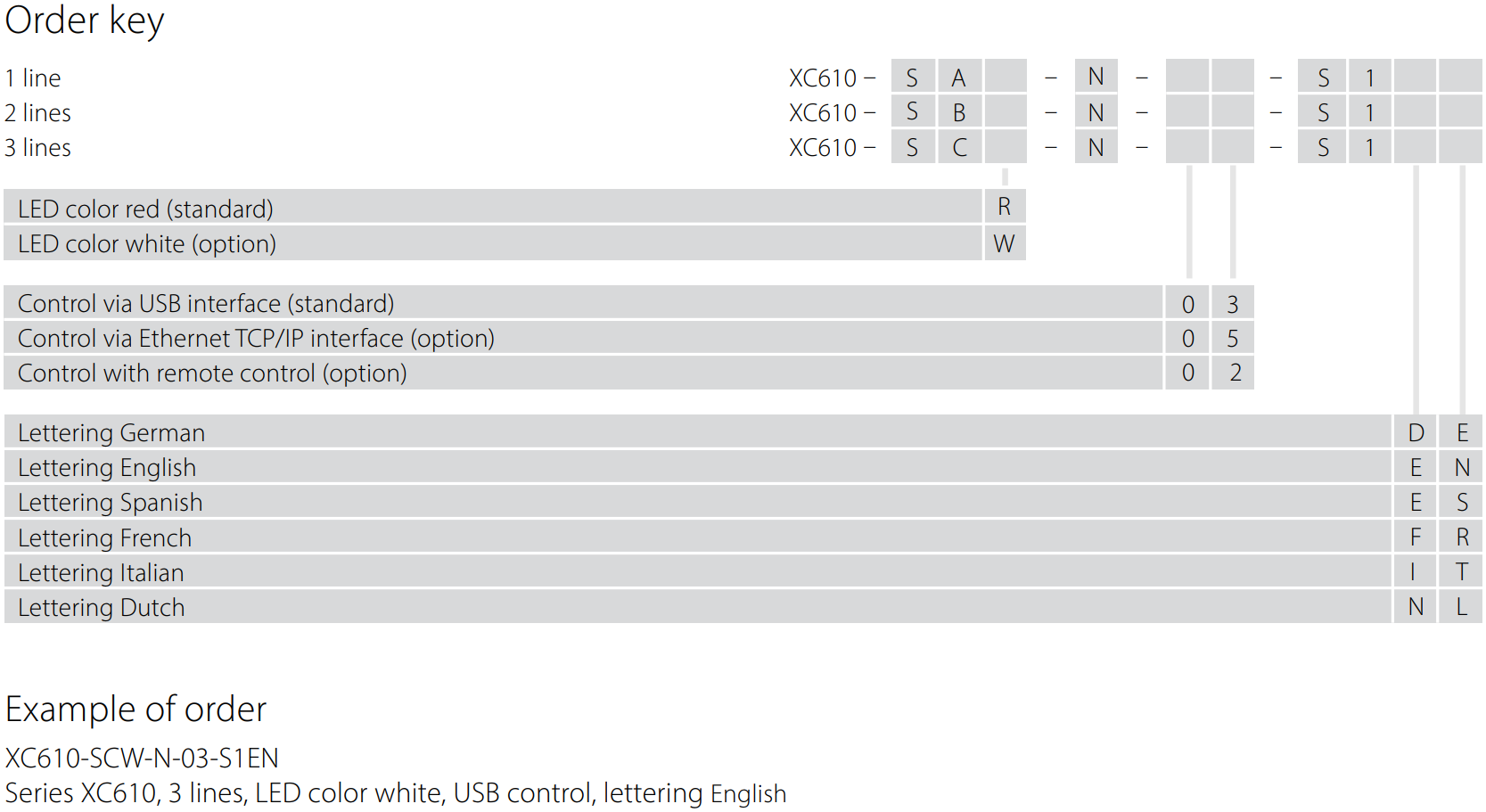

Type code

XC610-SxW-x-xx

LED display character height

25 mm

LED color

White

Display range : 1 x 4 digits

XC610-SAW-x-xx

Display range : 2 x 4 digits

XC610-SBW-x-xx

Display range : 3 x 4 digits

XC610-SCW-x-xx

Measures W x H x D

420 x 297 x 33 (41) mm

Power consumption

25W max.

Weight

approx. 4 kg

Subheader Icon Technical data interfaces

Data interface

Serial

Infrared remote control

Ethernet TCP/IP

WLAN access point   Logo Wifi

WLAN bridge   Logo Wifi

XC610-Sxx-x-01

XC610-Sxx-x-02

XC610-Sxx-x-05

XC610-Sxx-x-xx-18x0

XC610-Sxx-x-xx-18x1

Subheader Icon Technical data LED Colors

LED color

White

Red

XC610-SxW-x-xx

XC610-SxR-x-xx



Options

Key switch reset accident-free days

XC610-Sxx-x-xx-1336

WLAN Bridge System with multiple receivers

XC610-Sxx-x-xx-18xx

1 customer logo on standard design

XC610-Sxx-x-xx-S90xxx

2 or 3 customer logos on standard design

XC610-Sxx-x-xx-S91xxx

Individual foil design

XC610-Sxx-x-xx-S99xxx


Technical data

Power supply

100...240V AC, 50...60Hz

Housing

glas/stainless steel, body steel sheet varnished

Protection class

IP40

Detailed technical data see operating instructions.
