Series SGX500

Graphic boards

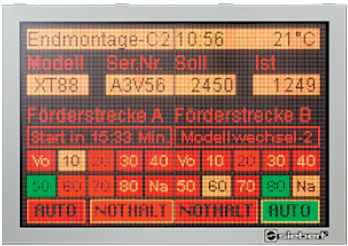

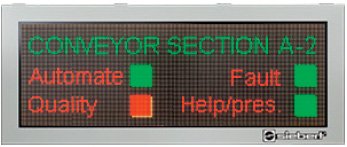

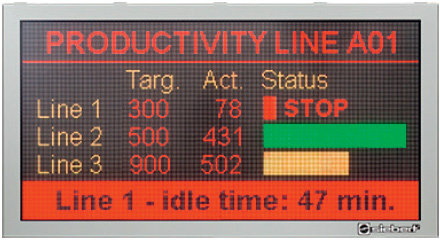

The graphic boards of the SGX500 series have a LED matrix for presenting texts, graphics and animations. They are deliverable with a display screen of up to 2 x 1 m as standard.


Standard units

img img
img img
img img
img img

Resolution

One-sided display

Double-sided display

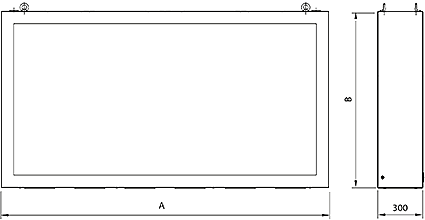

Measures A x B

128 x 64 Pixel

SGX500-128/64-1-DVI

SGX500-128/64-2-DVI

1120 x 650 mm

192 x 64 Pixel

SGX500-192/64-1-DVI

SGX500-192/64-2-DVI

1950 x 650 mm

192 x 128 Pixel

SGX500-192/128-1-DVI

SGX500-192/128-2-DVI

1950 x 1150 mm

256 x 128 Pixel

SGX500-256/128-1-DVI

SGX500-256/128-2-DVI

2430 x 1150 mm


One-sided display



Double-sided display

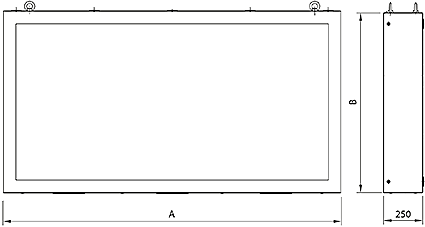

Dimensions in mm

Data interface

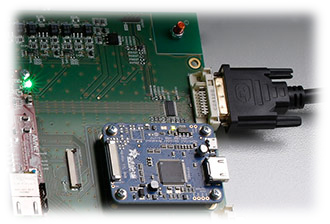

DVI-D
Integrated embedded PC, optional


LED color

Multicolours (red/green/orange), 256 color gradiations


Options

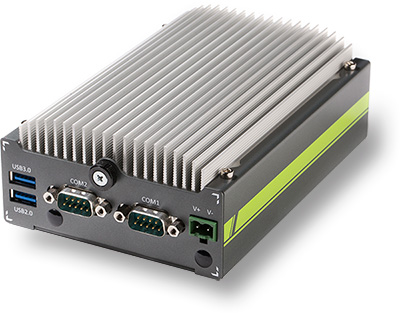

Integrated embedded PC

SGX500-xxx/xxx-x-IPC

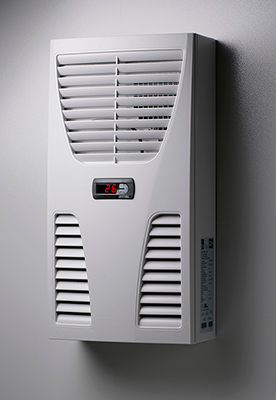

Air-/air cooling devices

SGX500-xxx/xxx-x-xxx-1487

Subheader Icon Technical data

Technical data

Power supply

230 V AC ±15 %, 50 Hz, optional 24 V DC ±15 % or 115 V AC ±15 %, 60 Hz

Housing

Steel sheet, stainless steel, varnishing RAL 5002 ultramarine blue

Protection class

IP54

Detailed technical data see operating instructions.
